| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,020 pcs
|
1020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

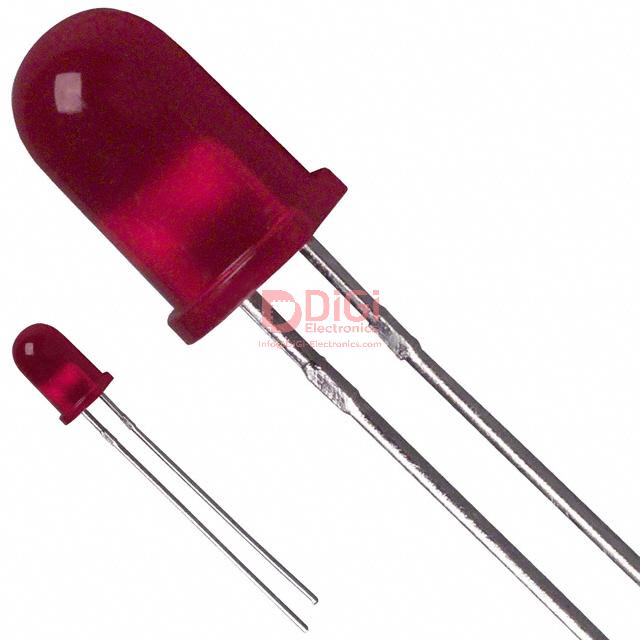

The Lite-On Inc. LTL-307E-011A is a discrete red LED designed for indication purposes. It operates with a typical forward voltage of 2V and a test current of 20mA, producing a luminous intensity of 19mcd at a peak wavelength of 635nm. The LED has a diffused lens with a domed top, providing a viewing angle of 50 degrees.
This component is housed in a radial package and features a through-hole mounting type, making it suitable for various PCB assembly processes. The lens diameter is 5mm (T-1 3/4), and the maximum height is 9.85mm. The LTL-307E-011A is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
This LED is ideal for applications requiring visual indication with a red light output. Its through-hole mounting and standard package size facilitate integration into electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2V.
The peak wavelength is 635nm.
The millicandela rating is 19mcd.
The viewing angle is 50 degrees.
It is a through-hole mounting type.
