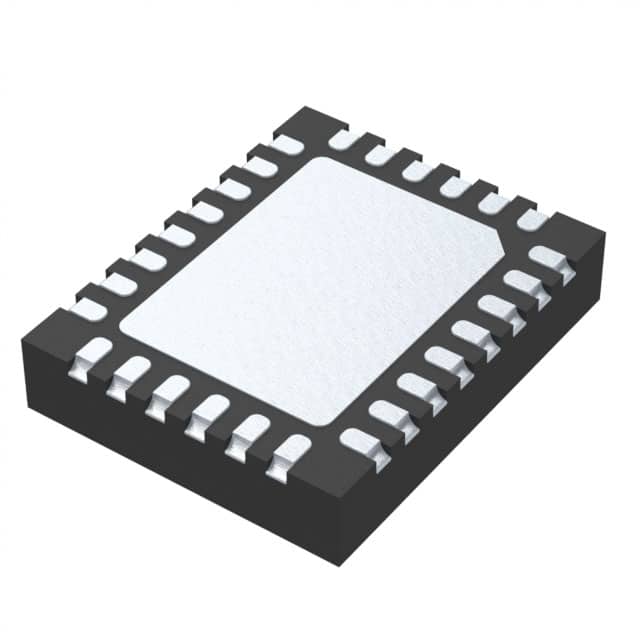

Mfr Part #:

LTC7802JUFDM#WPBF

Name: LTC7802JUFDM#WPBF
Brand: Analog Devices Inc./Maxim Integrated
SKU: LTC7802JUFDM#WPBF

Description:

40V, LOW IQ DUAL PHSE SYCH STP-D

Stock on Request

LTC7802JUFDM#WPBF Description

Short technical summary and product information.

40V, LOW IQ DUAL PHSE SYCH STP-D

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Analog Devices Inc./Maxim Integrated

40V, LOW IQ DUAL PHSE SYCH STP-D

Category	DC DC Switching Controllers
Manufacturer Name	Analog Devices Inc./Maxim Integrated
Clock Sync	Yes
Control Features	Enable, Frequency Control, Power Good, Soft Start, Tracking
Duty Cycle (Max)	99%
Frequency	100kHz ~ 3MHz
Function	Step-Down
Mounting Type	Surface Mount, Wettable Flank
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Positive
Output Phases	2
Output Type	Transistor Driver
Supplier Device Package	28-QFN (4x5)
Synchronous Rectifier	Yes
Topology	Buck
Voltage	4.5V ~ 40V
