LTC6915IDE#PBF The LTC6915IDE#PBF is an instrumentation amplifier from Analog Devices Inc. It features a rail-to-rail output and operates over a supply voltage range of 2.7V to 11V.
Mfr Part #:

LTC6915IDE#PBF

Available from 1 distributors
Mfr Name: AD(RoHS)
AD(RoHS)
The LTC6915IDE#PBF is an instrumentation amplifier from Analog Devices Inc. It features a rail-to-rail output and operates over a supply voltage range of 2.7V to 11V.
✓ Total Stock: 3 pcs
$ Price Range: $1.20

LTC6915IDE#PBF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTC6915IDE#PBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Lead Style
Mounting Type
Number of Circuits
Operating Temperature
Output Type
SVHC Present
Slew Rate
Supply Current
View Similar Products (0)

LTC6915IDE#PBF Description

Short technical summary and product information.

The LTC6915IDE#PBF is an instrumentation amplifier manufactured by Analog Devices Inc. This single-circuit amplifier offers a rail-to-rail output and a gain bandwidth product of 200 kHz.



Key electrical specifications include an input bias current of 4 nA and an input offset voltage of 5 µV. The device operates with a supply current of 1.73mA and supports a wide supply voltage range from 2.7V to 11V.

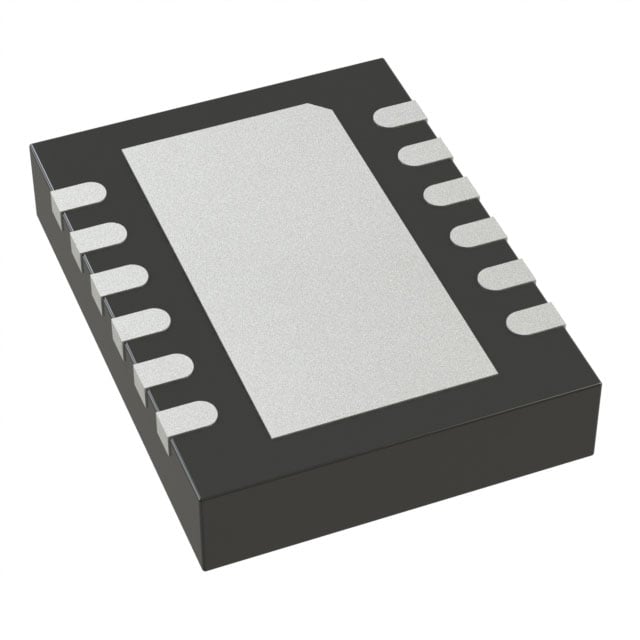

Designed for surface mount installation, the LTC6915IDE#PBF comes in a 12-WFDFN Exposed Pad package. It operates within an ambient temperature range of -40°C to 85°C.

LTC6915IDE#PBF Quick Information

Product Type: Instrumentation Amplifier
Series: LTC6915
Canonical Name: Analog Devices Inc. LTC6915IDE#PBF Instrumentation Amplifier
Subcategory: Linear

LTC6915IDE#PBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

LTC6915IDE#PBF Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTC6915IDE#PBF Features

  • Instrumentation amplifier, 1 circuit.
  • 200 kHz gain bandwidth product.
  • 5 µV input offset voltage.
  • 2.7V to 11V supply voltage range.
  • Surface mount 12-WFDFN package.

LTC6915IDE#PBF Applications

  • Precision sensor signal conditioning circuits.
  • Data acquisition systems requiring low offset.
  • Industrial process control and monitoring.
  • Medical instrumentation with low noise requirements.

LTC6915IDE#PBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

2.7V to 11V.

What is the package type?

12-WFDFN Exposed Pad.

What is the operating temperature range?

-40°C to 85°C.

What is the gain bandwidth product?

200 kHz.

What is the slew rate?

0.2 V/µs.

What is the input offset voltage?

5 µV.

What is the output type?

Rail-to-Rail.
