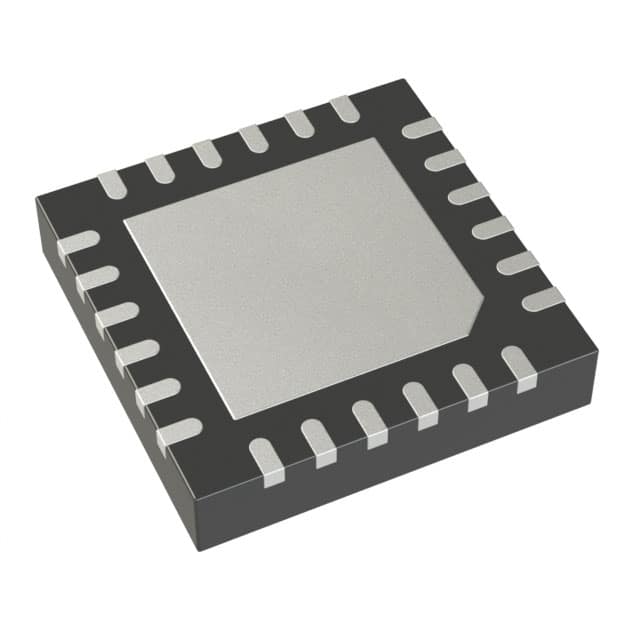

The LTC5583IUF#TRPBF from Analog Devices is a dual-channel RMS power detector designed for precision power measurement and level control across a wide frequency range of 40MHz to 6GHz. It accurately converts AC signal power to a DC voltage on a linear scale, independent of input waveform crest factor.
Key features include a linear dynamic range of up to 60dB and typical accuracy of ±0.5dB over temperature. The device provides 40dB channel-to-channel isolation at 2.14GHz, even with single-ended inputs, eliminating the need for baluns. Matched dual-channel outputs offer less than 1.25dB typical difference.
This detector is suitable for various RF standards such as LTE, EDGE, W-CDMA, CDMA2000, TD-SCDMA, and WiMAX. It also includes fast envelope detector outputs and a difference output pin for VSWR measurements. The LTC5583IUF#TRPBF is housed in a compact 4mm x 4mm 24-QFN package and is designed for surface mount applications.
Applications include VSWR monitoring, MIMO transmit power control, basestation PA control, and transmit/receive gain control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 40MHz to 6GHz.
The input power range is from -59dBm to 4dBm.
The typical accuracy is ±0.5dB over temperature.
It is in a 24-WFQFN Exposed Pad package.
It is designed for surface mount.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
