| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
122 pcs
|
122 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Control Features | |
| Function | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Phases | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology |
The LTC3875IUJ#PBF is a DC DC Switching Controller manufactured by Analog Devices, Inc. This component is designed for step-down applications and operates within a wide supply voltage range of 4.5V to 38V. It supports a switching frequency from 250kHz up to 720kHz, offering flexibility in power design.
Key electrical features include dual outputs, synchronous rectification, and a transistor driver output type. The device incorporates control features such as current limit, enable, frequency control, phase control, power good, soft start, and tracking. It operates reliably within a junction temperature range of -40°C to 125°C.

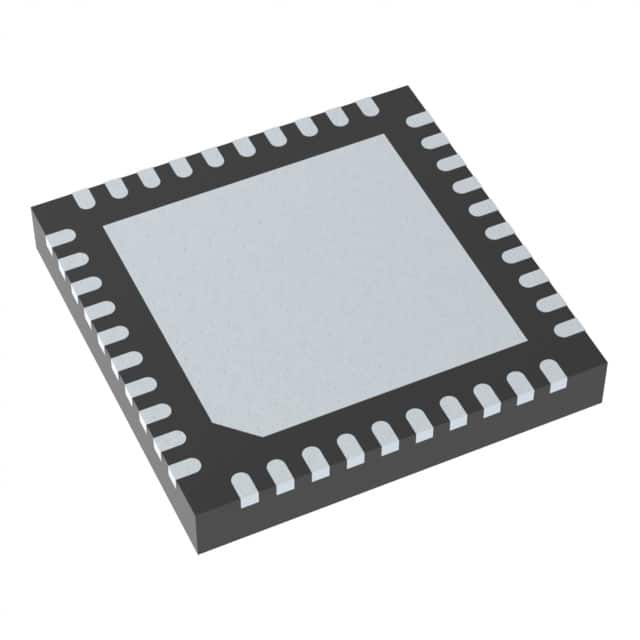

The LTC3875IUJ#PBF is housed in a 40-WFQFN Exposed Pad package, designed for surface mounting. Its positive output configuration and buck topology make it suitable for various power management applications. The component is RoHS3 Compliant, has an MSL rating of 1, and is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the LTC3875IUJ#PBF is -40°C to 125°C.
The supply voltage range (Vcc/Vdd) for the LTC3875IUJ#PBF is 4.5V to 38V.
The switching frequency range for the LTC3875IUJ#PBF is 250kHz to 720kHz.
The LTC3875IUJ#PBF has 2 outputs.
The LTC3875IUJ#PBF is available in a 40-WFQFN Exposed Pad package.
The LTC3875IUJ#PBF is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LTC3875IUJ#PBF is 1 (Unlimited).
