| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,800 pcs
|
7800 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Package / Case | |
| SVHC Present | |
| Storage Temperature | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology |

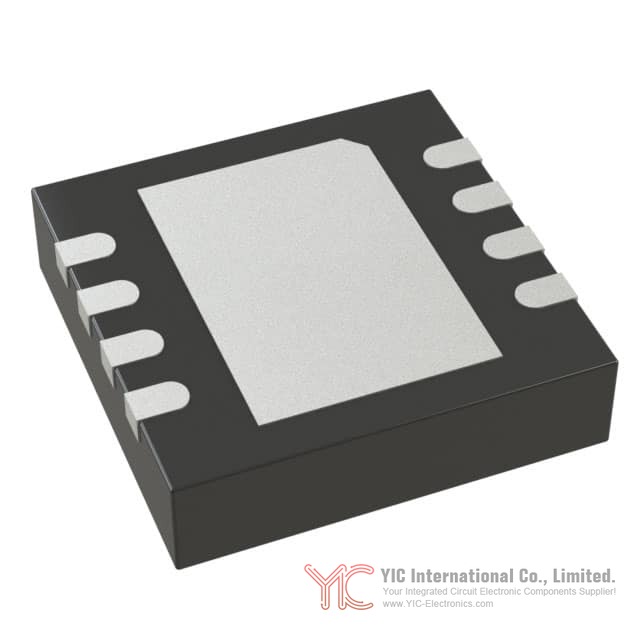

The LTC3642EDD#PBF is a buck switching regulator IC manufactured by Analog Devices Inc. This component is designed for step-down voltage conversion, offering an adjustable output voltage that can range from 0.8V to 45V. It accepts a wide input voltage range, from 4.5V to 45V, making it versatile for various power supply applications.
With a maximum output current capability of 50mA, this regulator is suitable for low-power applications. It features synchronous rectification for improved efficiency, particularly at lower output currents. The device is housed in a compact 8-DFN (3x3mm) package with an exposed pad, which aids in thermal performance. The operating temperature range is -40°C to 125°C (junction).
This regulator is designed for surface mounting and is supplied in tube format. Its adjustable output configuration provides flexibility for different system requirements, making it useful for bias supplies, reference voltages, or auxiliary rails in industrial control systems, portable instruments, and communication devices.
The operating temperature range is -40°C to 125°C (junction).
It comes in an 8-DFN (3x3mm) surface-mount package.
The input voltage range is 4.5V to 45V.
The output voltage is adjustable from 0.8V to 45V.
The maximum output current is 50mA.
Yes, it features synchronous rectification.
It uses a buck (step-down) topology.
