| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Synchronous Rectifier | |
| Topology |
The LTC3633AEUFD#PBF, manufactured by Analog Devices Inc. (formerly Linear Technology), is a high-performance DC-DC switching regulator. This device is designed for step-down (buck) conversion and offers an adjustable output voltage ranging from 0.6V to 6V.
Key electrical specifications include an input voltage range of 3.6V to 20V and a maximum output current of 3A per channel. The switching frequency can be set between 500kHz and 4MHz, allowing for a balance between efficiency and component size. It incorporates a synchronous rectifier for improved efficiency.

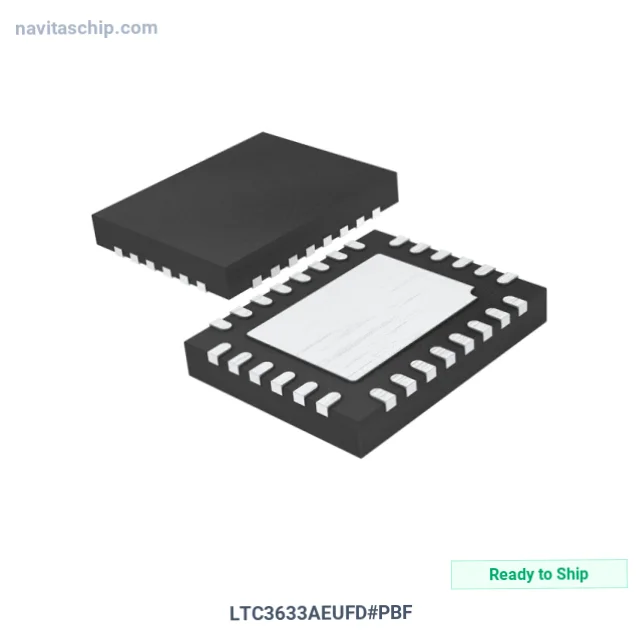

This regulator is housed in a compact 28-QFN (4x5) package with an exposed pad, designed for surface mounting. The operating temperature range is -40°C to 125°C (TJ). The device is RoHS compliant and comes in a tube package.
Its dual-output capability and adjustable voltage make it suitable for various power management applications where space and efficiency are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.6V to 20V.
0.6V to 6V, adjustable.
3A per output.
500kHz to 4MHz.
-40°C to 125°C.
28-WFQFN Exposed Pad (28-QFN 4x5mm).
Yes, it features a synchronous rectifier.
