| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,067 pcs
|
5067 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Package / Case | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology |
The LTC3612EFE#PBF is a high-performance, adjustable 3A step-down switching regulator manufactured by Analog Devices Inc. This component is designed for efficient power conversion, featuring a wide input voltage range from 2.25V to 5.5V and an adjustable output voltage that can be set from 0.6V to 5.5V.
With a maximum output current of 3A and a switching frequency that can range from 300kHz to 4MHz, the LTC3612EFE#PBF offers flexibility for various power management applications. It incorporates a synchronous rectifier for improved efficiency.

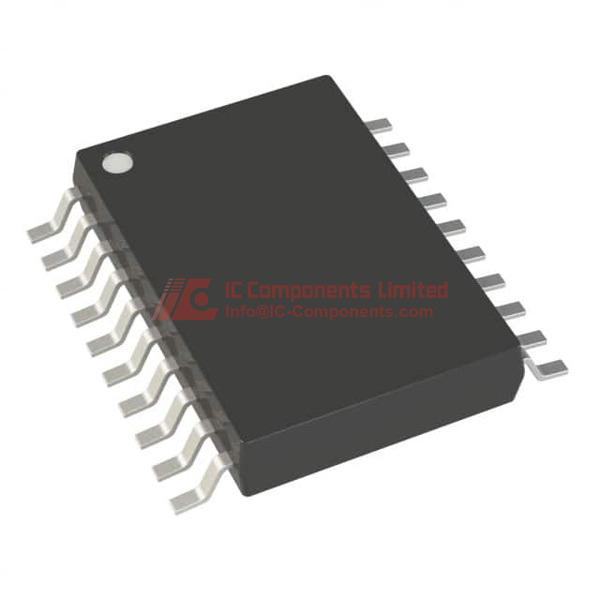

The device is housed in a 20-TSSOP-EP package with an exposed pad, designed for surface mounting. This packaging ensures good thermal performance and reliable integration into electronic circuits. The operating temperature range is -55°C to 150°C (TJ), making it suitable for demanding environments.
The LTC3612EFE#PBF can deliver up to 3A of output current.
The input voltage range is 2.25V to 5.5V.
The operating temperature range is -55°C to 150°C.
The LTC3612EFE#PBF is available in a 20-TSSOP package with an exposed pad (0.173", 4.40mm Width).
Yes, the LTC3612EFE#PBF includes a synchronous rectifier.
The switching frequency is programmable from 300kHz to 4MHz.
