| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 2018 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| SVHC Present | |
| Synchronous Rectifier | |
| Topology |

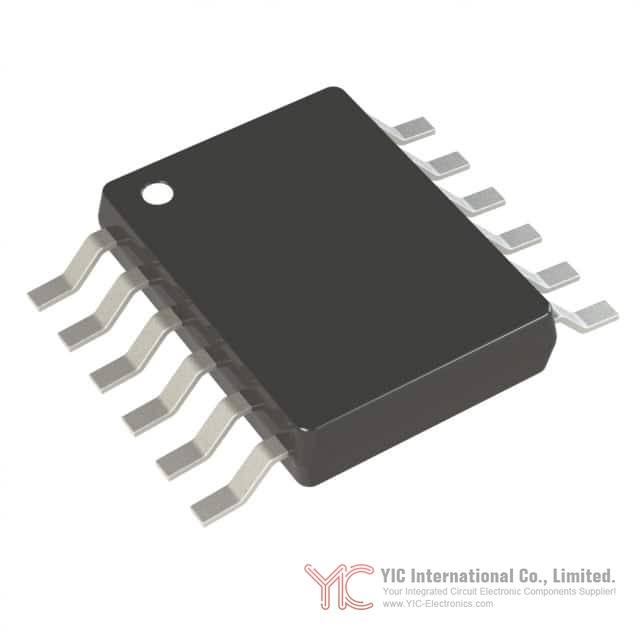

The LTC3600EMSE#PBF is a high-performance DC-DC switching regulator from Analog Devices Inc. designed for step-down applications. It features a programmable output voltage capability, with a maximum output voltage of 14.5V and a minimum of 0V. The device accepts an input voltage ranging from 4V to 15V and can deliver a continuous output current of 1.5A.
This buck converter operates at a switching frequency of 1MHz, contributing to its efficiency and compact solution size. It includes a synchronous rectifier for improved performance. The LTC3600EMSE#PBF is designed for surface mount installation and comes in a 12-MSOP-EP package.
With an operating temperature range of -40°C to 125°C (TJ), this component is suitable for various environmental conditions. Its RoHS status is listed as Lead free / RoHS Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The maximum output voltage for the LTC3600EMSE#PBF is 14.5V.
The input voltage range for the LTC3600EMSE#PBF is from 4V to 15V.
The LTC3600EMSE#PBF can deliver an output current of 1.5A.
The operating temperature range for the LTC3600EMSE#PBF is -40°C to 125°C (TJ).
The LTC3600EMSE#PBF is supplied in a 12-MSOP-EP package and a 12-TSSOP (0.118", 3.00mm Width) Exposed Pad package.
The RoHS status is listed as Lead free / RoHS Compliant.
The Moisture Sensitivity Level (MSL) for the LTC3600EMSE#PBF is 1 Unlimited.
