| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Function | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology |
The LTC3526LBEDC#TRPBF from Analog Devices, Inc. is a versatile adjustable boost regulator designed for power management applications. This component is capable of delivering up to 550mA of output current while operating from a wide input voltage range of 0.5V to 5V. The output voltage can be adjusted, with a maximum capability of 5.25V.
This device utilizes a boost topology and operates at a switching frequency of 1MHz, contributing to its efficiency and compact design. It includes a synchronous rectifier for improved performance. The operating temperature range is specified from -40°C to 85°C (TA), making it suitable for various environmental conditions.

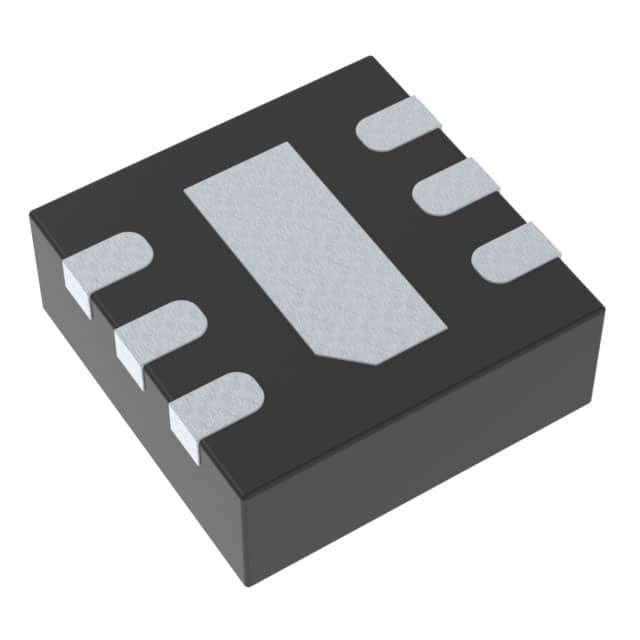

The LTC3526LBEDC#TRPBF is supplied in a 6-WFDFN Exposed Pad package, designed for surface mount installation. This package type, along with its compact 6-DFN (2x2) supplier device package, facilitates integration into space-constrained electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum fixed output voltage is 1.5V and the maximum output voltage is 5.25V.
The input voltage range is from 0.5V to 5V.
The device can supply a maximum output current of 550mA (Switch).
The operating temperature range is -40°C to 85°C (TA).
It is supplied in a 6-WFDFN Exposed Pad package, with a supplier device package of 6-DFN (2x2).
During installation, observe proper handling and ESD precautions. Use grounded equipment and wear an ESD wrist strap. Ensure the device is installed in a well-ventilated area and the PCB meets required layout guidelines.
The expected lifespan is generally influenced by operating conditions like temperature, voltage, and load. Typically, it is designed for long-term reliability, often exceeding 10 years under standard operating conditions. Follow manufacturer recommendations for thermal management and voltage limits to maximize lifespan.
