LTC3440EMS The LTC3440EMS is a DC-DC switching regulator from Analog Devices, featuring a step-up/step-down buck-boost topology. It offers an adjustable output and operates with a 2.5V input voltage.
Mfr Part #:

LTC3440EMS

Available from 2 distributors
Mfr Name: Linear Technology
Linear Technology
The LTC3440EMS is a DC-DC switching regulator from Analog Devices, featuring a step-up/step-down buck-boost topology. It offers an adjustable output and operates with a 2.5V input voltage.
✓ Total Stock: 5,164 pcs
$ Price Range: $1.08

LTC3440EMS Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,700 pcs
On Request
4700 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
464 pcs
On Request
464 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTC3440EMS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

LTC3440EMS Description

Short technical summary and product information.

The LTC3440EMS is a versatile DC-DC switching regulator manufactured by Analog Devices, designed for step-up and step-down voltage conversion. It utilizes a buck-boost topology, allowing it to efficiently regulate voltage whether the input is higher or lower than the desired output.



This device features an adjustable output voltage and can supply a current of up to 600mA. It operates with a nominal input voltage of 2.5V and supports a switching frequency range from 300kHz to 2MHz, enabling the use of small external components. The synchronous rectifier design enhances efficiency.

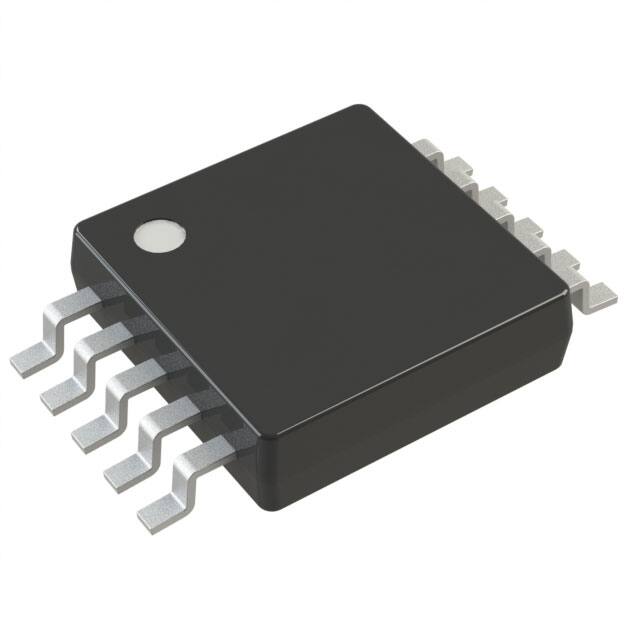

Packaged in a compact 10-MSOP surface mount configuration, the LTC3440EMS is suitable for space-constrained applications. It operates within a temperature range of -40°C to 85°C, making it reliable for various environmental conditions. Its adjustable output and robust performance make it a suitable choice for a wide array of power management designs.



Key specifications include its buck-boost function, adjustable positive output, and a maximum output current of 600mA. The device is designed for surface mounting, requiring appropriate PCB layout and soldering techniques for optimal performance.

LTC3440EMS Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: LTC3440EMS Step-Up/Step-Down DC-DC Switching Regulator
Subcategory: Voltage Regulators

LTC3440EMS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTC3440EMS Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTC3440EMS Features

  • Step-up/step-down buck-boost topology.
  • Adjustable positive output voltage.
  • Maximum output current of 600mA.
  • Operates from a 2.5V input voltage.
  • Compact 10-MSOP surface mount package.

LTC3440EMS Applications

  • Power management in portable devices.
  • Battery-powered electronic equipment.
  • Point-of-load power conversion.
  • General purpose DC-DC regulation.

LTC3440EMS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the LTC3440EMS?

The LTC3440EMS features an adjustable output voltage, with a specified value of 2.5V.

What is the package type of the LTC3440EMS?

The LTC3440EMS is available in a 10-TFSOP or 10-MSOP surface mount package with a 0.118-inch (3.00mm) width.

What is the operating temperature range?

-40°C to 85°C.

What is the switching frequency range?

300kHz to 2MHz.

What is the maximum output current?

600mA.

Does the LTC3440EMS use synchronous rectification?

Yes, it features synchronous rectification.

What is the topology of the LTC3440EMS?

Buck-boost (step-up/step-down).
