| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The LTC2980IY#PBF from Analog Devices is a 16-channel Power System Manager designed for sequencing, trimming, margining, and supervising power supplies. It features a PMBus compliant command set and supports precision point-of-load voltage adjustment.
This device includes overvoltage and undervoltage supervisors for sixteen output channels and two input channels, along with over and under temperature limits. It boasts an internal 16-bit ADC for monitoring sixteen output voltages, two input voltages, and die temperature. The LTC2980IY#PBF can also measure voltage across a current sense resistor on odd-numbered channels.
Key features include programmable fault responses with optional retry, automatic fault logging to internal EEPROM, and a programmable watchdog timer. It operates autonomously without additional software and can be powered from 3.3V or 4.5V to 15V. The operating temperature range is -40°C to 105°C.

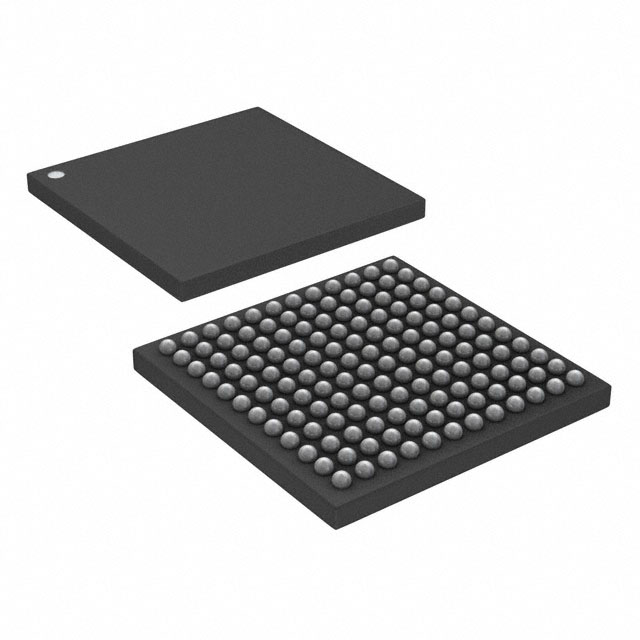

The LTC2980IY#PBF is available in a 144-BGA (12x12) package and is suitable for surface mount applications. Its applications include computers, network servers, industrial test and measurement, high reliability systems, medical imaging, and video.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LTC2980IY#PBF operates from 3.3V or 4.5V to 15V.
The operating temperature range is -40°C to 105°C.
The LTC2980IY#PBF is available in a 144-BGA (12x12) package.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The LTC2980IY#PBF manages 16 channels.
The power supply accuracy is 0.25%.
The LTC2980IY#PBF features a 16-bit ADC.
