| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Package / Case | |
| Supply Current | |
| Tape & Reel |

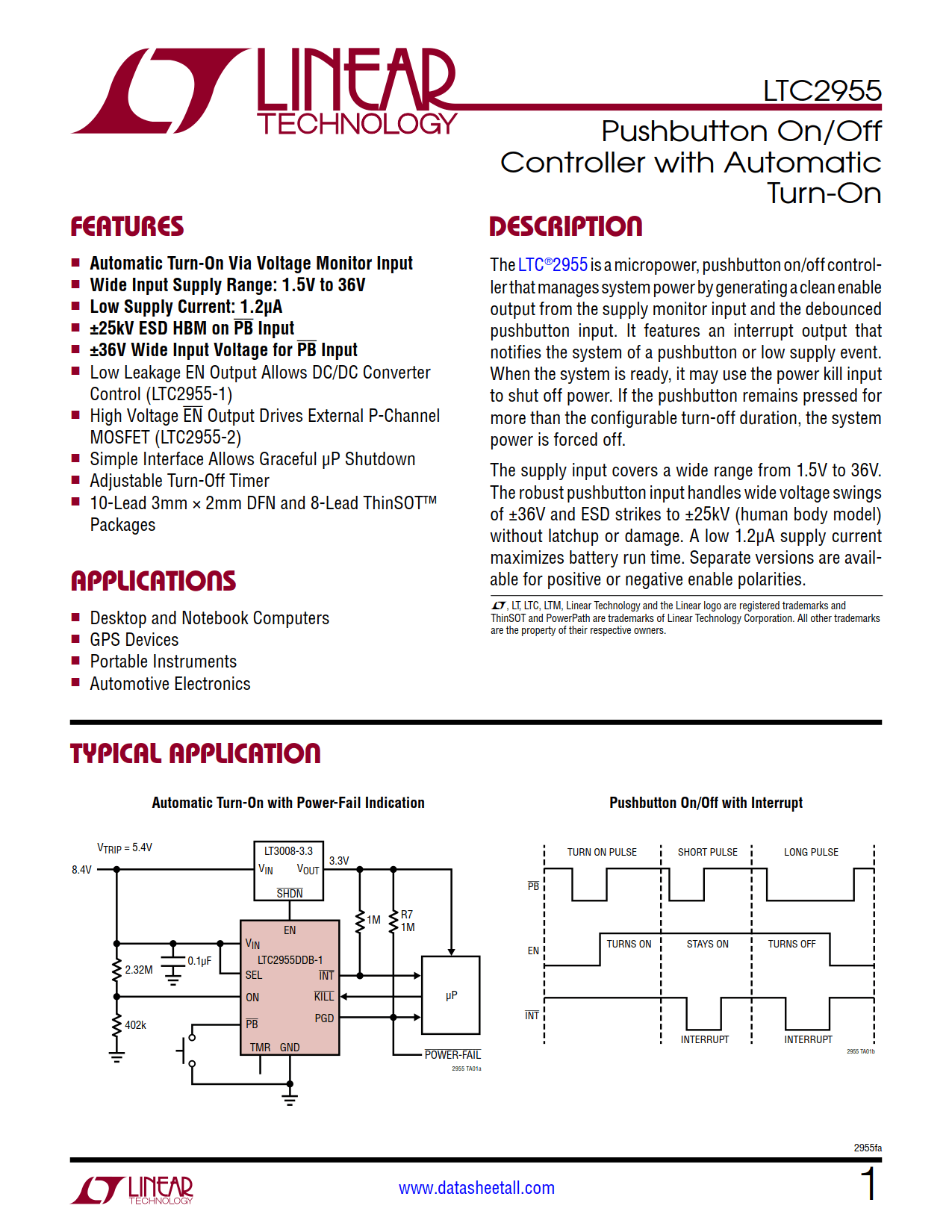

The LTC2955CDDB-1#TRPBF is a micropower pushbutton on/off controller manufactured by ADI Electronics. This component is designed to manage system power through a combination of a supply monitor input and a debounced pushbutton input, generating a clean enable output. It operates across a wide input supply voltage range from 1.5V to 36V, making it suitable for various power applications.
The device boasts a low supply current of only 1.2µA, which is crucial for maximizing battery run time in portable devices. It also offers robust protection with ±25kV ESD HBM on the pushbutton input and ±36V wide input voltage capability for the PB input. The LTC2955 is available in compact packages, including 10-lead DFN and 8-lead ThinSOT™, facilitating integration into space-constrained designs.
Key features include an interrupt output to notify the system of pushbutton or low supply events, and an adjustable turn-off timer. Separate versions are available for positive or negative enable polarities. Applications include desktop and notebook computers, GPS devices, portable instruments, and automotive electronics.
The input voltage range is 1.5V to 36V.
The typical supply current is 1.2µA.
It is available in 10-lead DFN and 8-lead SOT-23 packages.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
