| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| Supplier Device Package | |
| Type | |
| Voltage |
The LTC2910CDHC#PBF is a multi-voltage supervisory circuit from Linear Technology, now part of Analog Devices. This component is designed to monitor up to 8 different voltage levels, offering 8 selectable threshold combinations for versatile application.
Key electrical characteristics include its ability to provide active high or active low reset signals with a minimum reset timeout of 6ms. The output configuration is open drain or open collector, suitable for various system designs. The device operates within a temperature range of 0°C to 70°C.

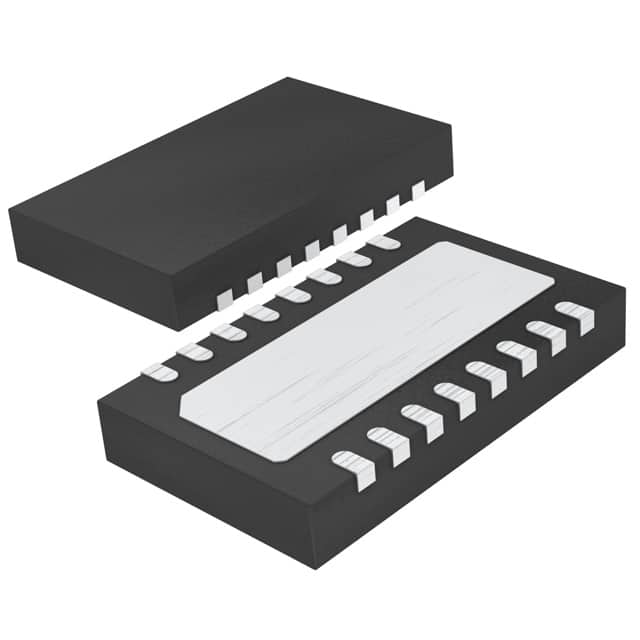

Packaged in a 16-WFDFN exposed pad (5x3mm), the LTC2910CDHC#PBF is designed for surface mounting. Its role as a supervisor circuit makes it critical for ensuring system stability and reliability by monitoring power supply voltages and generating reset signals during voltage fluctuations.
This part is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. Its REACH status is unaffected. The DK part number for this component is 2156-LTC2910CDHC#PBF-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It can monitor up to 8 voltages.
It supports 8 selectable threshold combinations.
The reset timeout is 6ms minimum.
It provides both active-high and active-low reset outputs.
It provides open drain or open collector output.
It operates from 0°C to 70°C.
It is available in a 16-DFN (5x3) surface-mount package with exposed pad (16-WFDFN).
