The Analog Devices LTC2668IUJ-16#PBF is a 16-bit Digital to Analog Converter (DAC) from the SoftSpan™ series. It offers a voltage-buffered output and supports an SPI data interface. The device operates within an analog supply voltage range of ±4.5V to ±15.75V and a digital supply voltage range of 1.71V to 5.5V.
Key electrical specifications include a settling time of 20.5μs (typical), a maximum linearity error of 0.0061%, and INL/DNL values of ±2.2, ±0.2 LSB. The analog output voltage ranges from -10V to 10V. The operating temperature range is -40°C to 85°C.

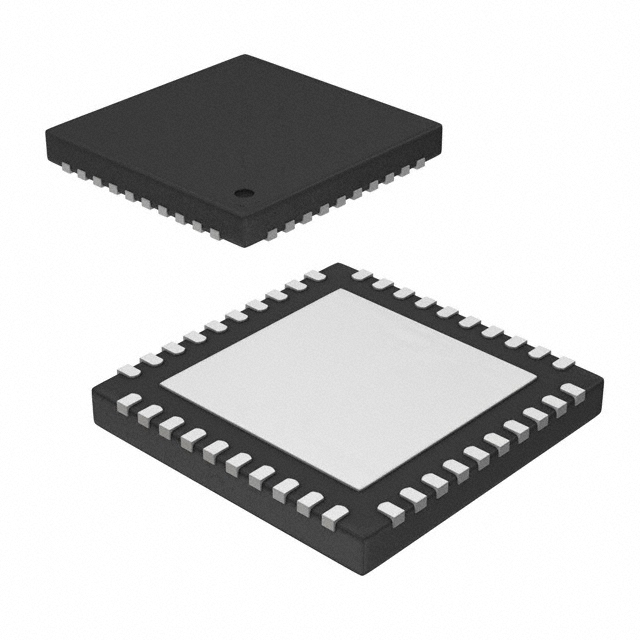

This DAC is housed in a 40-WFQFN Exposed Pad package and is designed for surface mounting. It has 40 pins and a terminal pitch of 0.5mm. The dimensions are 6mm in length, 6mm in width, and a maximum seated height of 0.8mm. The terminal finish is Matte Tin (Sn).
Applications for this component include wireless infrastructure, wideband communications, instrumentation, mobile communications, process control, industrial automation, automatic test equipment, and portable equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LTC2668IUJ-16#PBF has a resolution of 16 bits.
The LTC2668IUJ-16#PBF provides a voltage - buffered output.
The operating temperature range for the LTC2668IUJ-16#PBF is -40°C to 85°C.
The LTC2668IUJ-16#PBF is supplied in a 40-WFQFN Exposed Pad package.
The LTC2668IUJ-16#PBF is designed for surface mount.
The typical settling time for the LTC2668IUJ-16#PBF is 20.5μs.
The analog supply voltage range for the LTC2668IUJ-16#PBF is ±4.5V to ±15.75V.
