| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential Output | |
| Industrial Grade | |
| Interface | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| SVHC Present | |
| Settling Time | |
| Storage Temperature | |
| Tape & Reel |
The LTC2630ISC6-HZ8#TRMPBF from Analog Devices is an 8-bit digital-to-analog converter (DAC) designed for various applications requiring precise voltage output. This component features a buffered voltage output and utilizes an SPI interface for communication, making it suitable for integration into digital control systems.
Key electrical specifications include an 8-bit resolution and a single digital-to-analog converter. It operates with a supply voltage of 5V for both analog and digital sections, and offers a typical settling time of 3.7µs. The device exhibits low integral and differential nonlinearity, with maximum values of ±0.05 LSB and ±0.5 LSB, respectively.

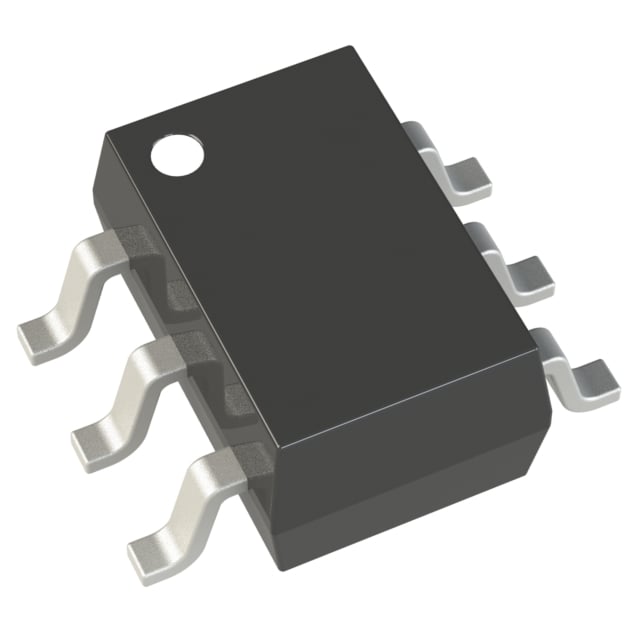

Packaged in a compact SC70-6 (6-TSSOP, SC-88, SOT-363) surface-mount case, the LTC2630ISC6-HZ8#TRMPBF is designed for efficient board space utilization. It operates within a temperature range of -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. The component is supplied in tape and reel packaging, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LTC2630ISC6-HZ8#TRMPBF has an 8-bit resolution.
The typical settling time for the LTC2630ISC6-HZ8#TRMPBF is 3.7µs.
It provides a buffered voltage output.
The operating temperature range is -40°C to 85°C.
It is supplied in a SC70-6 package.
