| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel |
The LTC1543CG from Linear Technology is a versatile 3-driver/3-receiver multiprotocol transceiver designed for data networking applications. It operates efficiently from a single 5V supply, utilizing an internal charge pump that requires minimal external components.
This transceiver supports a wide range of serial communication protocols, including RS232, RS449, EIA530, EIA530-A, V.35, V.36, and X.21. This software-selectable capability makes it adaptable for various DTE or DCE interface port configurations. Cable termination can be managed using the companion LTC1344A chip or discrete designs.
The LTC1543CG is available in a 28-lead SSOP surface mount package, suitable for space-constrained designs. Its operating temperature range is 0°C to 70°C for the commercial version (LTC1543C) and -40°C to 85°C for the industrial version (LTC1543I).
The LTC1543CG supports RS232, RS449, EIA530, EIA530-A, V.35, V.36, and X.21 protocols.
The LTC1543CG operates from a single 5V supply.
The commercial version (LTC1543C) operates from 0°C to 70°C, and the industrial version (LTC1543I) operates from -40°C to 85°C.

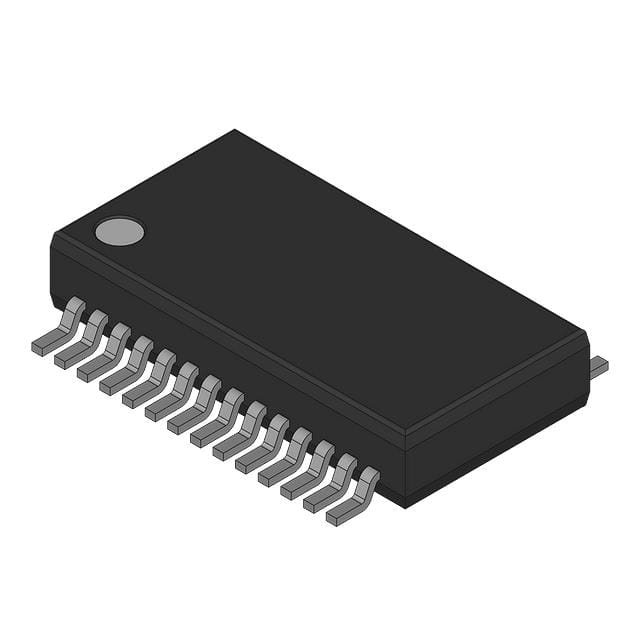

The LTC1543CG is available in a 28-lead SSOP surface mount package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
