| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
237 pcs
|
237 pcs | On Request | 1 | On Request | On Request | 2018 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Interface | |
| Industrial Grade | |
| Input Type | |
| Lead Spacing | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Operating Temperature | |
| Package / Case | |
| Reference Type | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |
The LTC1403CMSE-1#TRPBF is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) offering a sampling rate of 2.8 MSPS. Designed by Analog Devices, this ADC accepts both differential and single-ended inputs, providing flexibility for various signal conditioning requirements.
The device communicates via an SPI digital interface, simplifying integration with microcontrollers and digital signal processors. It operates from a 2.7V to 3.6V analog and digital supply range, making it suitable for low-voltage applications. The operating temperature range is 0°C to 70°C.

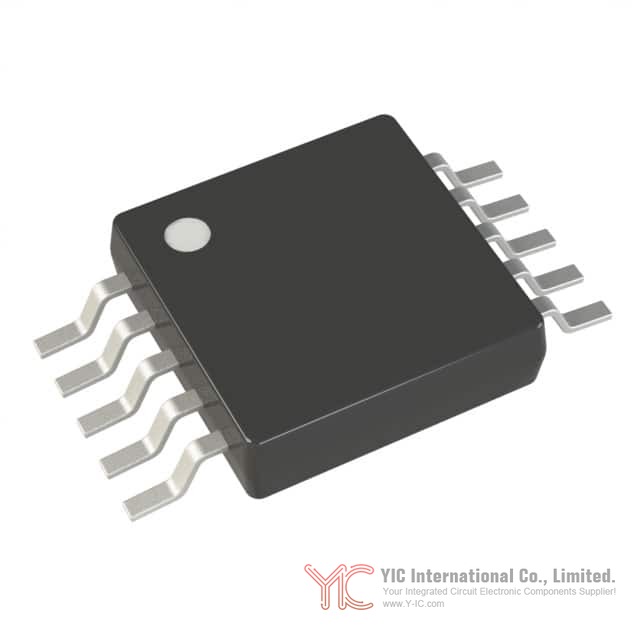

The LTC1403CMSE-1#TRPBF is housed in a 10-MSOP-EP (exposed pad) package and is offered in Tape & Reel packaging for automated assembly. The surface-mount package is designed for space-constrained designs.
Successive approximation register (SAR).
12 bits.
2.8 MSPS.
Differential and single-ended.
SPI.
Analog and digital: 2.7V to 3.6V.
0°C to 70°C.
