The LTC1290CIJ from Analog Devices is a single-chip 12-bit data acquisition system. It incorporates a serial I/O successive approximation Analog-to-Digital Converter (ADC) utilizing LTCMOS switched capacitor technology. This component can perform 12-bit unipolar or 11-bit plus sign bipolar A/D conversions.
The 8-channel input multiplexer is configurable for single-ended or differential inputs, with an on-chip sample-and-hold for single-ended channels. The device supports a sampling rate of up to 50kSPS and features a direct four-wire interface compatible with most MPU serial and parallel ports. It operates on single 5V or dual ±5V supplies.
Designed for applications requiring low power consumption, the LTC1290CIJ can be powered down via a serial word when idle. The serial I/O is compatible with industry-standard full duplex interfaces, supporting MSB- or LSB-first data sequences and providing 2's complement output coding in bipolar mode. The output data word length is programmable for 8, 12, or 16 bits, facilitating easy interface to shift registers and processors.

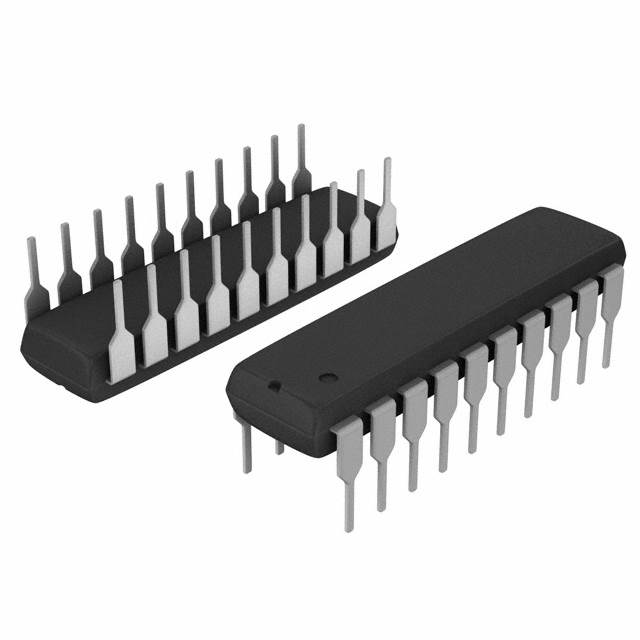

This ADC is available in a 20-lead PDIP and SO Wide package, suitable for through-hole mounting. It operates within an ambient temperature range of -40°C to 85°C.
The LTC1290CIJ has a resolution of 12 bits.
The maximum sampling rate for the LTC1290CIJ is 50kSPS.
The LTC1290CIJ offers 8 input channels.
The LTC1290CIJ uses an SPI data interface.
The LTC1290CIJ can operate on 5V or ±5V supplies.
The LTC1290CIJ operates in the temperature range of -40°C to 85°C.
The LTC1290CIJ is designed for Through Hole mounting.
