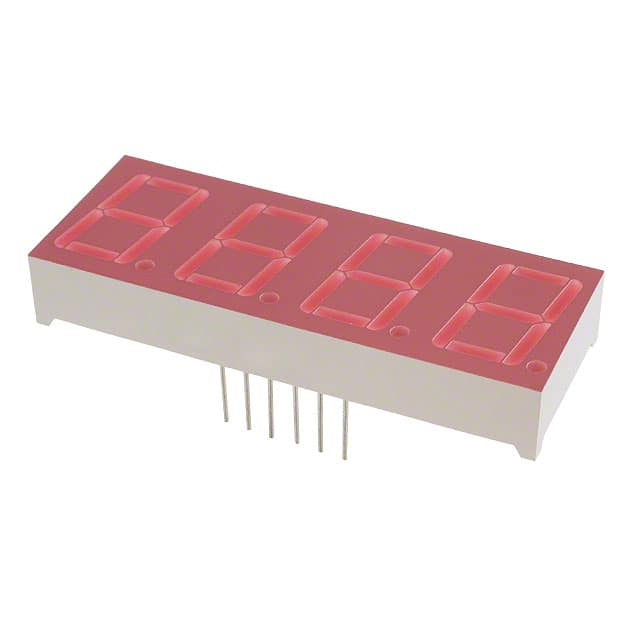

LTC-5723HR The Lite-On Inc. LTC-5723HR is a 0.56 inch quad red 7-segment LED display. It features a typical forward voltage of 2.0V and a peak emission wavelength of 635nm.
Mfr Part #:

LTC-5723HR

Available from 1 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTC-5723HR is a 0.56 inch quad red 7-segment LED display. It features a typical forward voltage of 2.0V and a peak emission wavelength of 635nm.
✓ Total Stock: 10 pcs
$ Price Range: $0.99

LTC-5723HR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTC-5723HR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Common Pin
Current
Digit
Display Type
Lead Spacing
Millicandela Rating
Number of Characters
Power Dissipation
Power Dissipation (Max)
Reverse Current
Voltage
Wavelength
View Similar Products (0)

LTC-5723HR Description

Short technical summary and product information.

The Lite-On Inc. LTC-5723HR is a 0.56 inch (14.2 mm) digit height quadruple digit seven-segment display. This device utilizes high efficiency red LED chips, offering excellent character appearance, high brightness, and high contrast with a wide viewing angle.



Key electrical specifications include a typical forward voltage of 2.0V at 20mA, a maximum power dissipation of 75mW per segment, and a peak emission wavelength of 635nm. The display has a typical luminous intensity of 870 μcd at 10mA.



Packaged in a 12-DIP format with a common cathode pin configuration, the LTC-5723HR is suitable for various display applications requiring clear and bright red numeric readouts. Its operating temperature range is -35°C to +85°C.

LTC-5723HR Quick Information

Product Type: LED Character and Numeric Display
Canonical Name: Lite-On Inc. LTC-5723HR 0.56 inch Quad Red 7-Segment LED Display
Subcategory: 7-Segment Display

LTC-5723HR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTC-5723HR Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTC-5723HR Features

  • 0.56 inch digit height.
  • High brightness and contrast.
  • Wide viewing angle.
  • Solid state reliability.
  • Red 7-segment display.

LTC-5723HR Applications

  • Numeric displays.
  • Instrumentation readouts.
  • Industrial control panels.
  • Electronic signage.

LTC-5723HR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the digit height of the LTC-5723HR display?

The digit height is 0.56 inches (14.2 mm).

What is the typical forward voltage for the LTC-5723HR?

The typical forward voltage is 2.0V at 20mA.

What is the peak emission wavelength of the red LEDs in the LTC-5723HR?

The peak emission wavelength is 635nm.

What is the operating temperature range for the LTC-5723HR?

The operating temperature range is -35°C to +85°C.

What is the package type for the LTC-5723HR display?

The package type is 12-DIP (0.600", 15.24mm).
