| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
272 pcs
|
272 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Common Pin | |
| Continuous Forward Current | |
| Current | |
| Digit | |
| Display Type | |
| Lead Spacing | |
| Millicandela Rating | |
| Number of Characters | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation (Max) | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Voltage | |
| Wavelength |

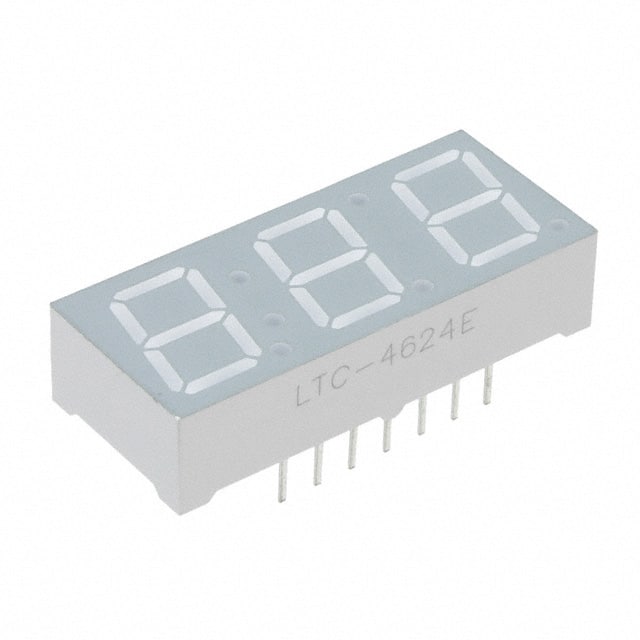

The Lite-On Inc. LTC-4624E is a triple-digit, 7-segment LED display designed for clear visual indication. It features a 0.4-inch (10.0 mm) digit height with continuous uniform segments, providing excellent character appearance. The display utilizes red-orange LED chips on a GaP substrate, offering high brightness and contrast with a wide viewing angle.
Key electrical specifications include a typical forward voltage of 2.0V at 20mA and a maximum power dissipation of 75mW per segment. The dominant wavelength is 621nm, with a peak emission wavelength of 630nm. The display is categorized for luminous intensity, with a typical average luminous intensity of 2200 µcd at 10mA.
Packaged in a 16-DIP format, the LTC-4624E has overall dimensions of 12.80mm x 30.02mm x 7.00mm. It operates within a temperature range of -35°C to +85°C. The device is described as lead-free and RoHS3 compliant, with an MSL of 1.
This display is suitable for various applications requiring numerical or character readouts where reliability and clear visibility are essential. Its solid-state reliability and low power requirement make it a practical choice for embedded systems and instrumentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The digit height is 0.4 inches (10.0 mm).
The LTC-4624E has three digits.
The display color is orange-red.
The typical forward voltage is 2.0V at 20mA.
The maximum power dissipation is 75mW per segment.
The operating temperature range is -35°C to +85°C.
Yes, the LTC-4624E is described as lead-free and RoHS3 compliant.
