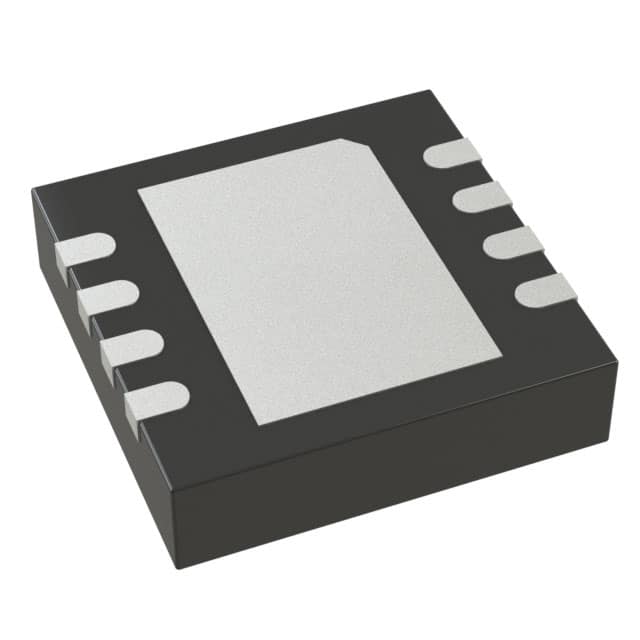

Mfr Part #:

LT5560EDD#PBF

Name: LT5560EDD#PBF
Brand: Analog Devices Inc./Maxim Integrated
SKU: LT5560EDD#PBF

Description:

IC MIXER 10KHZ-4GHZ UP/DWN 8DFN

Stock on Request

LT5560EDD#PBF Description

Short technical summary and product information.

IC MIXER 10KHZ-4GHZ UP/DWN 8DFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

LT5560EDD#TRPBF

Analog Devices Inc./Maxim Integrated

IC MIXER 10KHZ-4GHZ UP/DWN 8DFN

Category	RF Mixers
Manufacturer Name	Analog Devices Inc./Maxim Integrated
Current	12mA
Frequency	10kHz ~ 4GHz
Gain	2.4dB
Mounting Type	Surface Mount
Noise Figure	9.3dB
Number of Mixers	1
RF Type	CATV, DBS, PHS, UHF, VHF
Secondary Attributes	Up/Down Converter
Supplier Device Package	8-DFN (3x3)
Voltage	2.7V ~ 5.3V
