| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Gain | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Noise Figure | |
| Package / Case | |
| SVHC Present | |
| Storage Temperature |
The LT5520EUF#PBF is an RF Mixer manufactured by Analog Devices Inc. This component is designed for upconversion applications, operating within a frequency range of 1.3GHz to 2.3GHz.
Key electrical specifications include a typical gain of -1dB and a noise figure of 15dB. It requires a supply voltage between 4.5V and 5.25V, with a typical current consumption of 60mA. The device features a single mixer.
This RF Mixer is housed in a compact 16-QFN (4x4mm) package and is designed for surface mounting. It is suitable for general RF applications, including wireless communications and RF front-ends for transmitters.
Environmental compliance includes RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is 1 (unlimited).
The frequency range is 1.3GHz to 2.3GHz.
The typical gain is -1dB.
The noise figure is 15dB typical.
The supply voltage range is 4.5V to 5.25V.
The typical current consumption is 60mA.

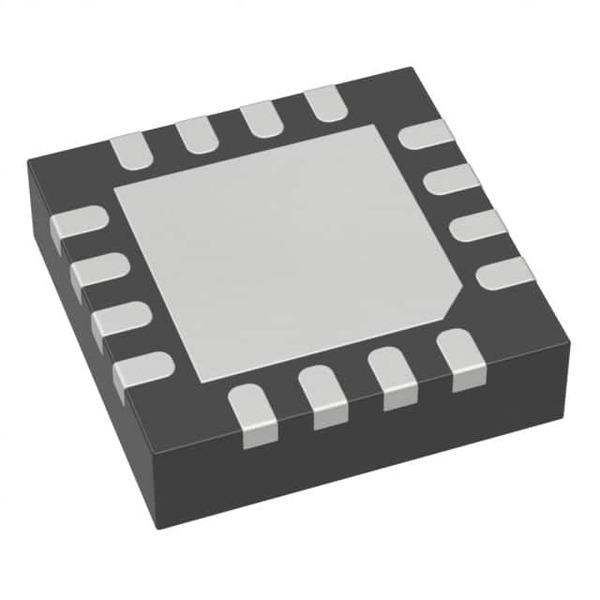

It comes in a 16-QFN (4x4mm) or 16-WQFN Exposed Pad package.
It integrates a single mixer.
