| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,000 pcs
|
23000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Output Configuration | |
| Output Current | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology |
The LT3995EMSE#TRPBF is a versatile DC-DC switching regulator manufactured by Analog Devices Inc. This component is designed for step-down (buck) conversion and supports a wide input voltage range from 4.3V to 60V. The output voltage is adjustable, with a minimum specified at 1.197V and a maximum up to 55.8V. It can deliver a continuous output current of up to 3A.

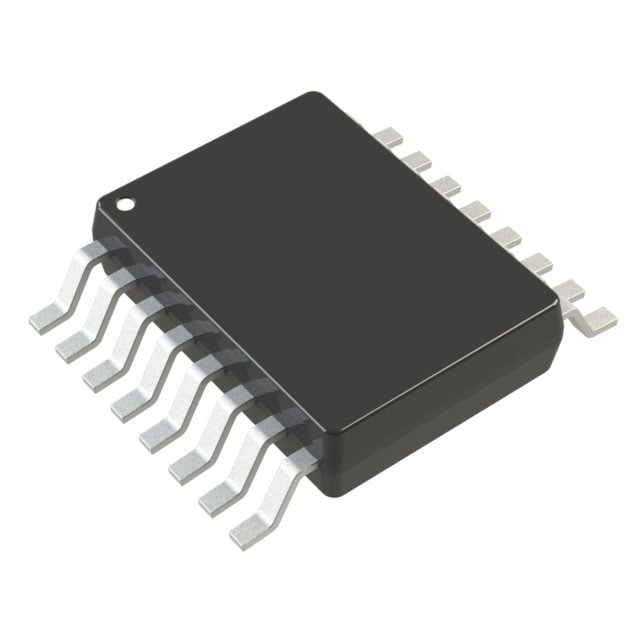

The switching frequency can be set anywhere between 200kHz and 2.25MHz, offering flexibility in design for trade-offs between efficiency and component size. The device operates within a junction temperature range of -40°C to 125°C. It is housed in a 16-TFSOP package with an exposed pad, designed for surface mounting.
This regulator is suitable for various power management applications requiring efficient voltage conversion. Its adjustable output and wide input range make it adaptable to different system requirements. The synchronous rectifier is not included in this model.
The device accepts input voltages from 4.3V to 60V.
It is housed in a 16-TFSOP surface mount package.
The component operates safely up to 125°C junction temperature.
The regulator provides a nominal output current of 3A.
The circuit utilizes a non-synchronous rectifier topology.
Output voltage adjusts from 1.197V to 55.8V.
