| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| SVHC Present | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology |
The LT3980IDE#TRPBF is an integrated buck switching regulator IC manufactured by Analog Devices Inc. It is designed for step-down applications with an adjustable positive output voltage.
This component features a wide input voltage range from 3.6V to 58V and an adjustable output voltage ranging from 0.79V to 57.42V. It can deliver a continuous output current of up to 2A. The switching frequency is configurable between 225kHz and 2.25MHz, allowing for optimization of efficiency and noise.

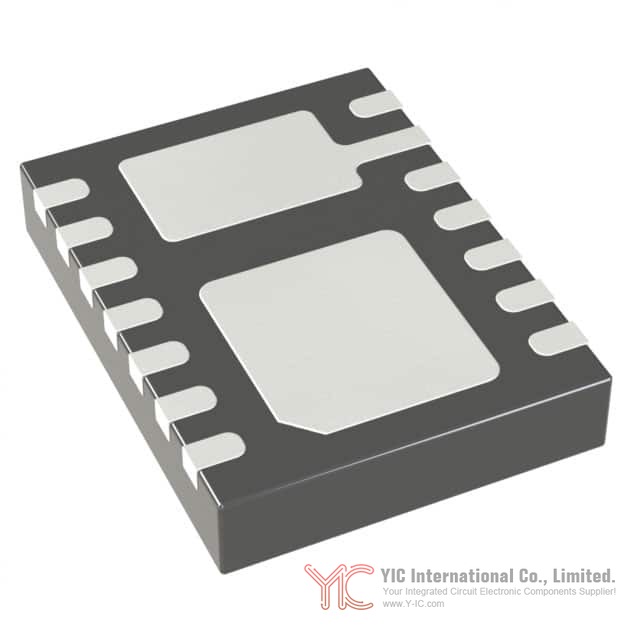

The LT3980IDE#TRPBF is packaged in a 14-lead WFDFN exposed pad, which enhances thermal performance. It is designed for surface mount applications and operates within a junction temperature range of -40°C to 125°C. The device utilizes a buck topology without a synchronous rectifier, employing an internal diode for freewheeling.
This regulator is suitable for various power management applications requiring a stable and adjustable DC voltage from a higher input source. Its robust operating temperature range ensures reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.6V to 58V.
The output voltage is adjustable from 0.79V to 57.42V.
The maximum output current is 2A.
The operating junction temperature range is -40°C to 125°C.
It is in a 14-WFDFN exposed pad package.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
