| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| SVHC Present | |
| Synchronous Rectifier | |
| Topology |
The LT3501EFE#TRPBF is a dual-output, synchronous step-down DC-DC switching regulator manufactured by Analog Devices Inc. This component is designed for power management applications, offering an adjustable output voltage ranging from 0.8V to 23.75V.
Key electrical specifications include an input voltage range of 3.1V to 25V and a maximum output current of 3A. The switching frequency can be set between 250kHz and 1.5MHz, providing flexibility in design. The device operates within a temperature range of -40°C to 125°C (TJ).

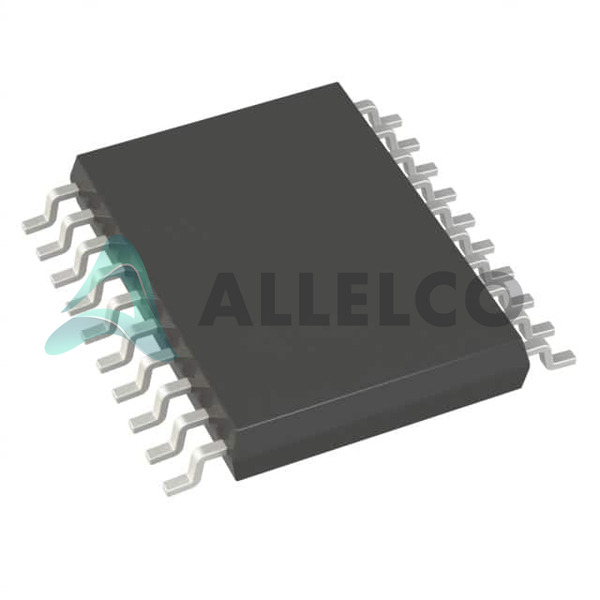

Packaged in a 20-TSSOP (0.173", 4.40mm Width) Exposed Pad, the LT3501EFE#TRPBF is designed for surface mount applications. It is supplied on tape and reel, suitable for automated assembly processes. The regulator features a step-down function and does not incorporate a synchronous rectifier.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3A
3.1V to 25V
Buck
Yes, it ranges from 250kHz to 1.5MHz
20-TSSOP with an exposed pad
-40°C to 125°C junction temperature
Two independent outputs
