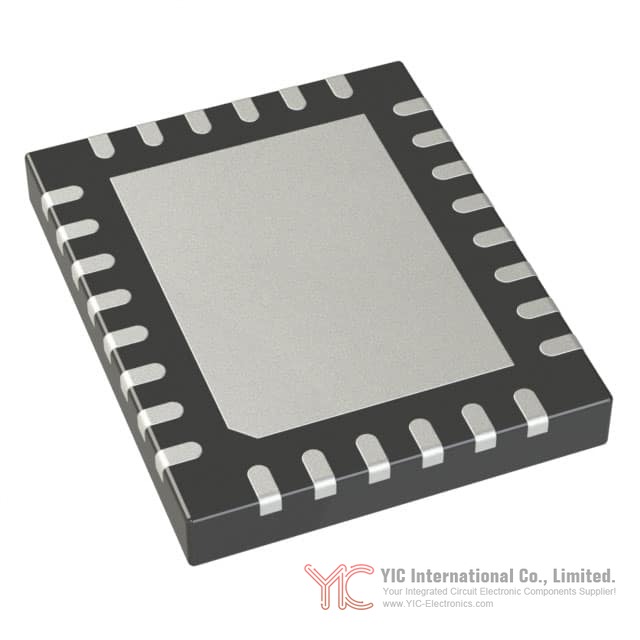

The LT3070IUFD#TRPBF is a linear voltage regulator integrated circuit (IC) from Analog Devices, designed for power management applications. It provides a programmable positive output, supporting up to 5A of output current. The device comes in a compact 28-QFN (4x5mm) package for surface mounting.
Key specifications include a minimum output voltage of 0.8V and a maximum of 1.8V, with a maximum input voltage of 3V. It features a low dropout voltage of 0.15V at 5A, minimizing power waste. The regulator also boasts a high Power Supply Rejection Ratio (PSRR) of 66dB at 120Hz, ensuring stable power for sensitive loads.
Protection features include over current, over temperature, reverse polarity, and under voltage lockout (UVLO). Control features such as Enable, Power Good, and Soft Start are also integrated, making it suitable for stable power supply in systems with variable voltage requirements. The device operates within a temperature range of -40°C to 125°C.
The LT3070IUFD#TRPBF is housed in an exposed pad 28-pin QFN package (4mm x 5mm), ensuring efficient thermal management and allowing for reliable surface mount assembly on PCBs. It integrates a single programmable positive linear regulator channel.
The output voltage is adjustable from 0.8V to 1.8V.
The maximum input voltage is 3V.
It is available in a 28-QFN (4x5) package and a 28-WFQFN Exposed Pad package, both surface mount.
The dropout voltage is 0.15V maximum at 5A output current.
The operating temperature range is -40°C to 125°C.
It includes Enable, Power Good, and Soft Start control features.
It provides Over Current, Over Temperature, Reverse Polarity, and Under Voltage Lockout (UVLO) protection.
