| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| PSRR |

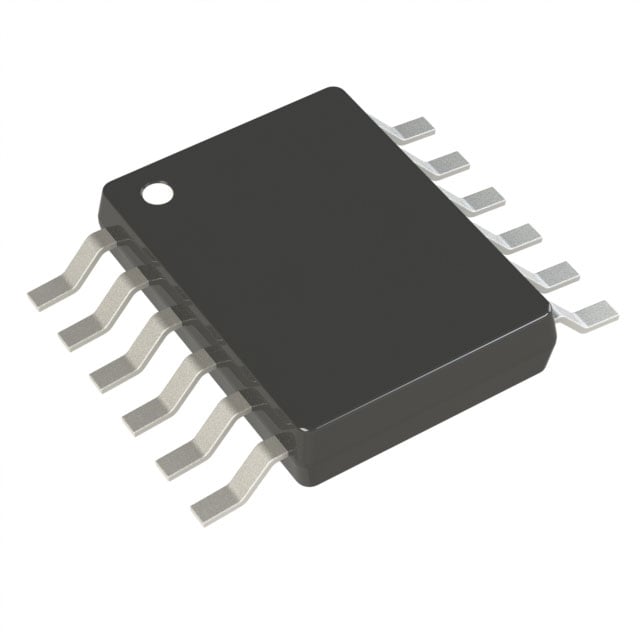

The LT3065EMSE#PBF is a linear voltage regulator manufactured by Analog Devices Inc. This adjustable positive voltage regulator is designed to provide a stable output with a maximum current capability of 500mA. It supports a wide input voltage range, extending up to 45V, and offers an adjustable output voltage starting from 0.6V up to 40V.
Key electrical characteristics include a maximum dropout voltage of 0.51V at 500mA, a quiescent current of 110 µA, and a maximum supply current of 25 mA. The regulator also features a PSRR of 85dB at 120Hz, indicating good noise rejection capabilities.
This component is supplied in a 12-TSSOP package with an exposed pad, suitable for surface mounting. The operating temperature range is from -40°C to 125°C, making it suitable for various environmental conditions. Control features such as current limit, enable, power good, and soft start are integrated, along with protection features like over current, over temperature, and reverse polarity protection.
The output voltage is adjustable from 0.6V to 40V.
The maximum input voltage is 45V.
The maximum dropout voltage is 0.51V at 500mA.
The typical quiescent current is 110µA.
The PSRR is 85dB at 120Hz.
The operating temperature range is -40°C to 125°C.
The package is 12-TSSOP (0.118, 3.00mm Width) Exposed Pad.
