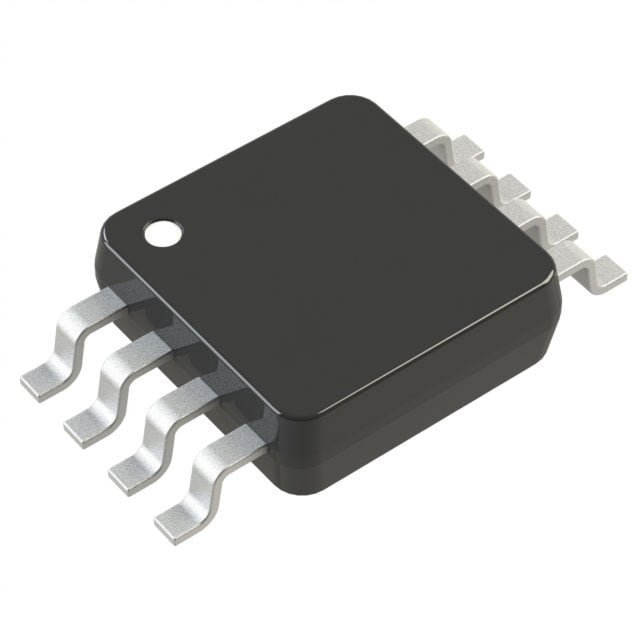

The LT1723CMS8#TRPBF from Analog Devices Inc. is a dual general-purpose operational amplifier designed for various applications. It boasts a high gain bandwidth product of 200 MHz and a fast slew rate of 70V/µs, making it suitable for demanding signal processing tasks.
This amplifier operates with a supply voltage span between 5V and 10V and provides an output current of 50 mA per channel. The input bias current is a low 40 nA, and the input offset voltage is 150 µV. The device consumes a supply current of 3.7mA per channel.
Packaged in an 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) format, the LT1723CMS8#TRPBF is designed for surface mounting. It is supplied in tape and reel packaging.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The operating temperature range is from 0°C to 70°C.
The LT1723CMS8#TRPBF operates from a supply voltage span of 5V to 10V.
The operating temperature range is 0°C to 70°C.
The device is available in an 8-TSSOP or 8-MSOP package with 0.118 inch (3.00mm) width.
It contains 2 amplifier circuits.
The gain bandwidth product is 200 MHz.
The slew rate is 70 V/µs.
The input bias current is 40 nA.
