| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Number of Elements | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| PSRR | |
| Propagation Delay | |
| Quiescent Current | |
| SVHC Present | |
| Type |

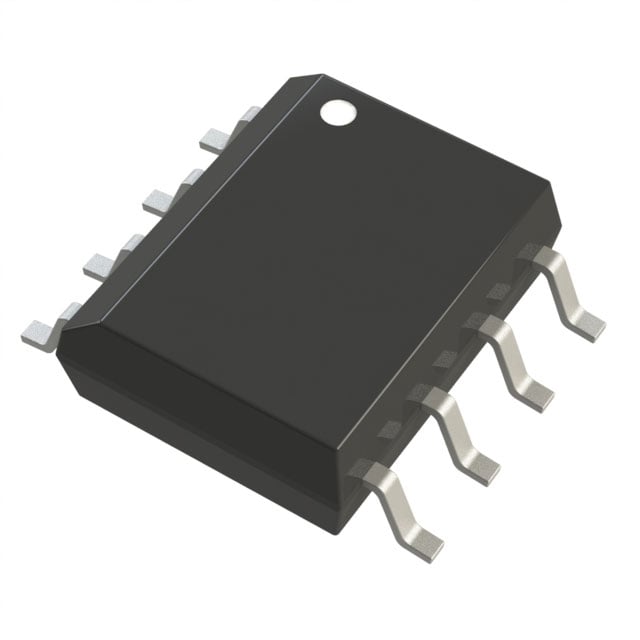

The LT1671CS8#PBF is an integrated circuit comparator manufactured by Analog Devices Inc. This component features a single element with latch capability, making it suitable for various logic control applications. It offers CMOS, Complementary, and TTL compatible output types.
The device operates across a wide temperature range, from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. Key electrical characteristics include a maximum input offset voltage of 2.5mV at ±5V and a maximum input bias current of 0.28µA at ±5V. The typical output current is 20mA, with a maximum quiescent current of 800µA.
Signal integrity is maintained with a typical CMRR of 100dB and PSRR of 85dB. The maximum propagation delay is specified at 80ns. The LT1671CS8#PBF is housed in an 8-SOIC package, measuring 0.154 inches (3.90mm) in width, and is supplied in a tube for standard packaging.
Environmental compliance includes RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is rated as 1 (Unlimited), indicating suitability for standard assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LT1671CS8#PBF operates from -40°C to 85°C.
The LT1671CS8#PBF is available in an 8-SOIC (0.154", 3.90mm Width) package.
The maximum propagation delay is 80ns.
The LT1671CS8#PBF supports CMOS, complementary, and TTL outputs.
Yes, the LT1671CS8#PBF includes a latch function.
