| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | 1101+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| PSRR | |
| Package / Case | |
| Protection Features | |
| Quiescent Current | |
| Supply Current | |
| Tape & Reel |

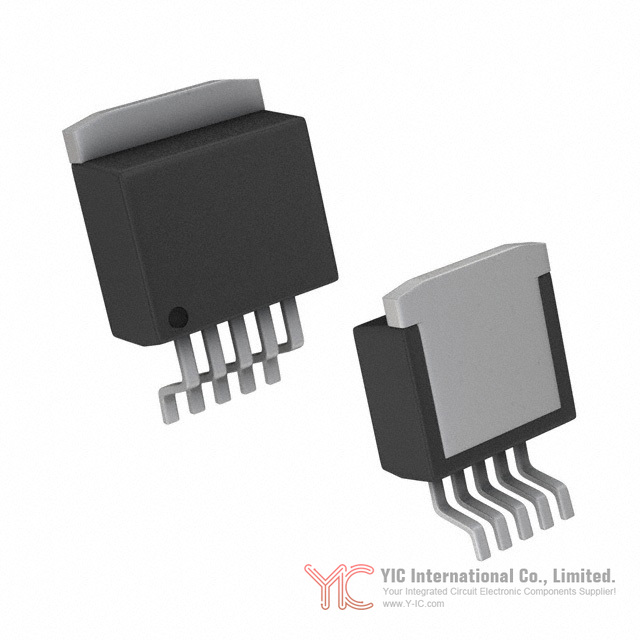

The LT1529IQ#TRPBF is a single-channel, positive adjustable linear voltage regulator IC manufactured by Analog Devices Inc. Designed for surface mounting, it is housed in a 5-lead DDPAK package (TO-263-6, D²Pak style).
This regulator supports input voltages up to 15V and provides an adjustable output voltage ranging from 3.75V to 14V. It can deliver a maximum output current of 3A with a low dropout voltage of 0.95V at 3A. Key electrical characteristics include a quiescent current of 100µA and a supply current of 160mA. It also features a high power supply rejection ratio (PSRR) of 62dB at 120Hz.
Integrated protection features include overcurrent, overtemperature, and reverse polarity protection, enhancing reliability. The device also includes an enable control pin for power management.
Applications for the LT1529IQ#TRPBF include power supplies for industrial equipment, communication systems, and test and measurement instruments. Its robust design and adjustable output make it suitable for demanding power management applications.
The LT1529IQ#TRPBF can provide a maximum output current of 3A.
The output voltage for the LT1529IQ#TRPBF is adjustable from 3.75V to 14V.
The maximum input voltage for the LT1529IQ#TRPBF is 15V.
The dropout voltage for the LT1529IQ#TRPBF is a maximum of 0.95V at 3A output current.
The LT1529IQ#TRPBF includes overcurrent, overtemperature, and reverse polarity protection.
The operating temperature range for the LT1529IQ#TRPBF is -45°C to 125°C.
