| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Slew Rate | |
| Supply Current |

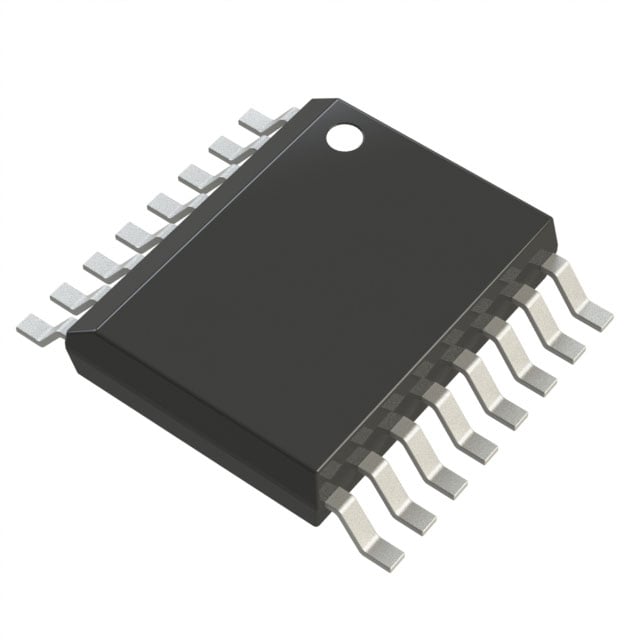

The LT1399IGN#PBF is a high-performance current feedback amplifier IC manufactured by Analog Devices Inc. This device integrates three independent amplifier circuits within a single package, making it suitable for space-constrained applications.
Key electrical specifications include a gain bandwidth product of 300 MHz and a rapid slew rate of 800V/µs, enabling fast signal processing. It operates over a wide supply voltage range from 4V to 12V and features a low input bias current of 10 µA and an input offset voltage of 1.5 mV. The amplifier delivers an output current of 80 mA per channel and consumes a supply current of 4.6mA per channel.
Designed for surface mounting, the LT1399IGN#PBF comes in a 16-SSOP package with dimensions of 0.154 inches (3.90mm) in width. It operates within an industrial temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is from 4V to 12V.
-40°C to 85°C.
16-SSOP surface mount package.
800 V/µs.
300 MHz.
It contains 3 amplifier circuits.
80 mA per channel.
