| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The LT1308BCF is a micropower, fixed frequency step-up DC/DC converter designed by Analog Devices. It operates over a 1V to 10V input voltage range and features a fixed switching frequency of 600kHz. This device is capable of delivering up to 2A of switch current and is available in a 14-TSSOP package.
Key electrical specifications include a low input voltage capability starting at 1V, a switch voltage rating of 36V, and a low VCESAT switch of 300mV at 2A. The converter offers adjustable output voltage and supports both Boost and SEPIC topologies. It operates without a synchronous rectifier.
Applications for the LT1308BCF include GSM/CDMA phones, digital cameras, LCD bias supplies, answer-back pagers, GPS receivers, battery backup supplies, and handheld computers. Its compact 14-TSSOP package is suitable for surface mount applications.
The LT1308B variant, as described in the datasheet, features continuous switching at light loads with a quiescent current of 2.5mA. Both devices consume less than 1μA in shutdown mode. The low-battery detector reference is specified at 200mV ± 2% at room temperature and ±3% over temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LT1308BCF operates with an input voltage of 1V.

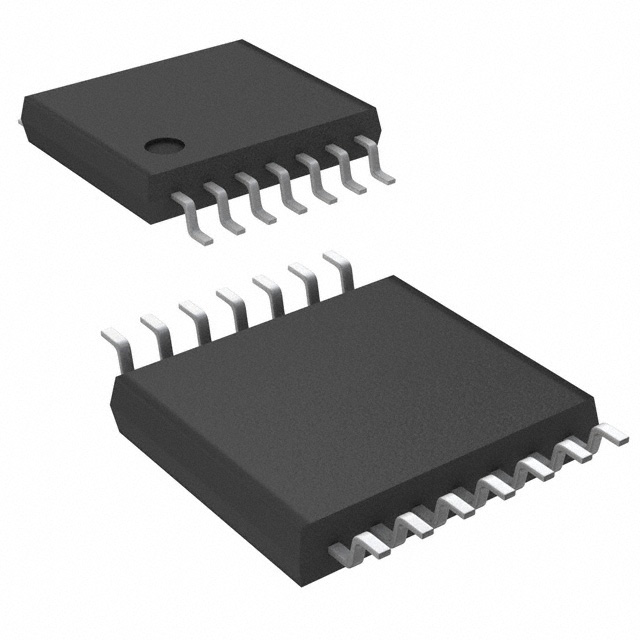

The LT1308BCF is available in a 14-TSSOP surface-mount package (0.173", 4.40mm Width).
The switching frequency is 600kHz.
The switch voltage rating is 36V.
The typical quiescent current is 2.5mA.
Yes, the shutdown current is 1µA max.
It supports Boost and SEPIC topologies.
