| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Mounting Type | |
| Output Voltage | |
| Power Consumption | |
| Speed |

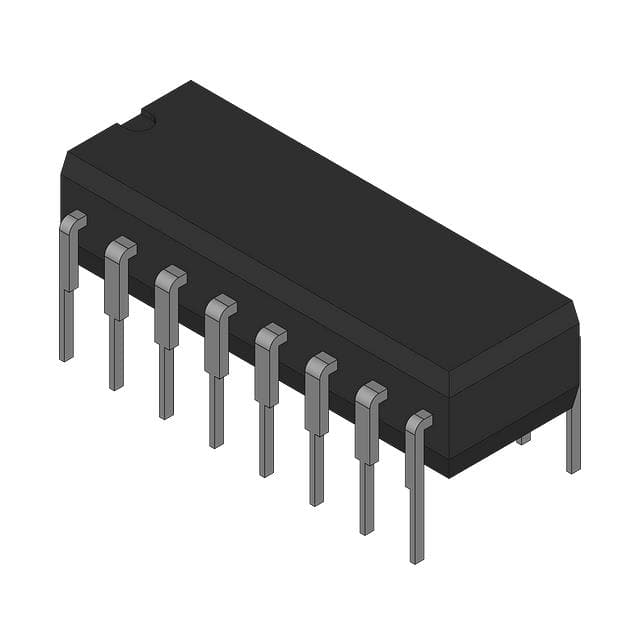

The LT1081IN by Linear Technology is an advanced, low-power dual RS232 driver and receiver designed for interface applications. It features a charge pump and guarantees no latchup, providing a balance between low power dissipation and ruggedness.
This device offers superior performance compared to CMOS, with an improved speed of up to 120kBaud and enhanced protection, allowing driver outputs to be shorted to -30V without damage. The driver outputs are fully protected against overload. Unlike CMOS, the LT1081IN's architecture ensures that signal lines are not loaded when shut down or when power is off, with both receiver and RS232 outputs entering a high impedance state.
Key electrical characteristics include a typical power consumption of 60mW and a supply current of 1mA in shutdown mode. It requires only 1mF capacitors. The device is available in an SO package, suitable for surface mount applications.
Applications for the LT1081IN include portable computers, battery-powered RS232 systems, power supply generators, terminals, and modems.
The maximum VCC supply voltage is 6V, V+ is 12V, and V- is -12V.
The LT1081IN operates over 120kBaud.
The typical power consumption is 60mW.
The LT1081IN is available in an SO package for surface mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
