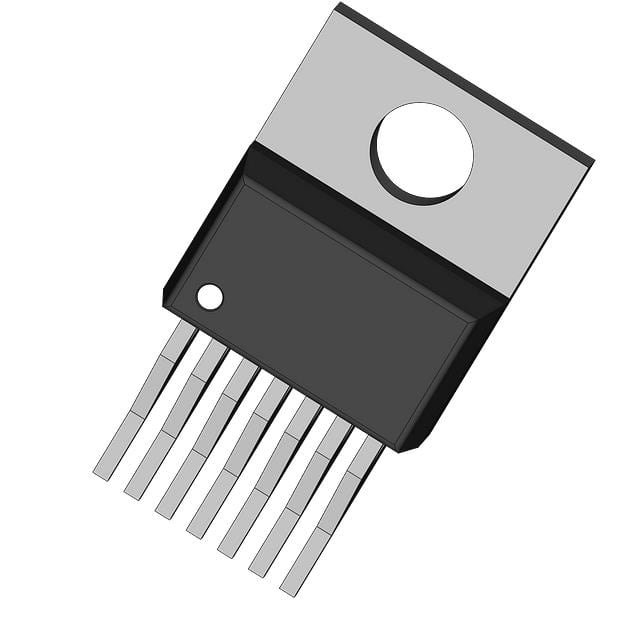

The LT1076HVIT is a versatile step-down switching regulator IC from Linear Technology, designed for efficient power conversion. It integrates a 5A power switch, oscillator, control circuitry, and current limit components onto a single chip.
Key electrical specifications include an input voltage range of 8V to 60V for buck conversion, a switching frequency of 100kHz, and a typical quiescent current of 8.5mA. The LT1074 variant offers a 5A onboard switch, while the LT1076 is rated at 2A. The device supports buck converter output voltages from 2.5V to 50V and features pulse-by-pulse current limiting for protection.
This regulator can be configured as a positive-to-negative converter, a negative boost converter, or a flyback converter. Its design innovations allow for high output currents, up to 10A in tapped-inductor buck configurations. The LT1076HVIT is available in a low-cost TO-220 package, suitable for through-hole mounting.
Applications include various DC-DC conversion needs where a robust and efficient switching regulator is required. The integrated design simplifies external component count, facilitating easier circuit design and implementation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LT1074 features a 5A onboard switch.
The input voltage range is 8V to 60V.
The switching frequency is 100kHz.
The typical quiescent current is 8.5mA.
The typical current limit is 6.5A.
It is available in a TO-220 package.
