| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
466 pcs
|
466 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Size / Dimension | |
| Viewing Angle | |
| Voltage | |
| Wavelength | |
| Wavelength - Peak |

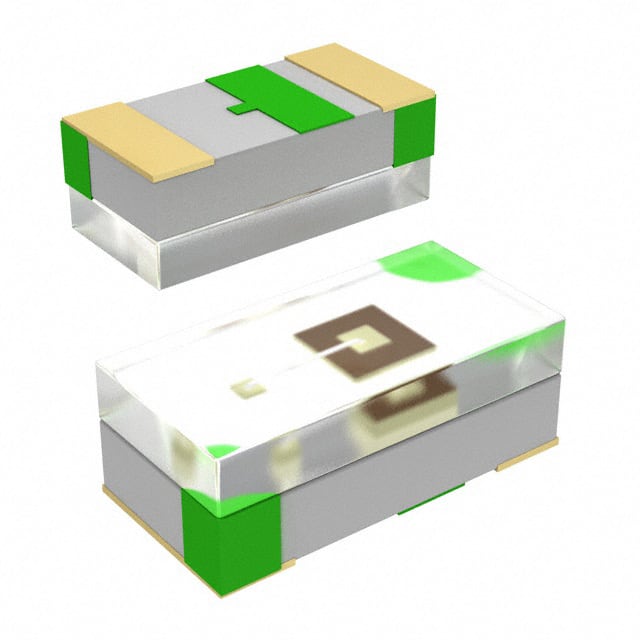

This Osram LT QH9G-Q2S2-25-1 is a green diffused surface mount LED designed for indication purposes. It features a dominant wavelength of 525nm and a peak wavelength of 525nm, emitting a clear green light.
The LED has a typical forward voltage of 2.85V and a current test value of 5mA, providing a luminous intensity of 185mcd. Its viewing angle is broad, ranging from 155° to 170°, ensuring visibility from various perspectives.
The component is housed in a compact 0402 (1005 Metric) package, measuring 1.00mm in length and 0.50mm in width, with a maximum height of 0.40mm. The lens color is white, and the lens transparency is diffused, contributing to its light output characteristics. This surface mountable LED is suitable for various electronic applications requiring discrete green light indication.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Osram LT QH9G-Q2S2-25-1 LED is 2.85V at 5mA test current.
The Osram LT QH9G-Q2S2-25-1 LED is green with a dominant and peak wavelength of 525nm.
The typical luminous intensity of the LT QH9G-Q2S2-25-1 LED is 185mcd.
The Osram LT QH9G-Q2S2-25-1 LED is supplied in a 0402 (1005 Metric) package.
The viewing angle of the LT QH9G-Q2S2-25-1 LED is 155° to 170°.
