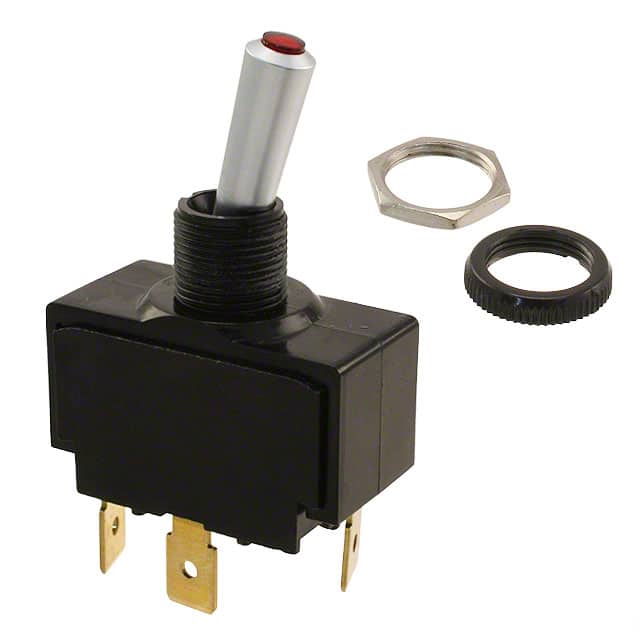

LT-1511-610-012 This is a Littelfuse Inc. LT-Series SPST toggle switch. It features a 15A rating and an illuminated standard round actuator.
Mfr Part #:

LT-1511-610-012

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
This is a Littelfuse Inc. LT-Series SPST toggle switch. It features a 15A rating and an illuminated standard round actuator.
✓ Total Stock: 10 pcs
$ Price Range: $0.75

LT-1511-610-012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LT-1511-610-012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Illumination
Illumination Type, Color
Illumination Voltage (Nominal)
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Switch Type
Termination Style
Voltage Rating
View Similar Products (0)

LT-1511-610-012 Description

Short technical summary and product information.

The Littelfuse Inc. LT-1511-610-012 is a single pole, single throw (SPST) toggle switch from the LT-Series. It is designed for panel mount applications with a 15/32-32 bushing thread and a 12.70mm diameter panel cutout.



This illuminated toggle switch has a current rating of 15A at 125VAC or 28VDC and a horsepower rating of 3/4 HP at 125-250VAC. The actuator is a standard round type with a length of 18.16mm. Illumination is provided by a red incandescent bulb operating at a nominal voltage of 12 VAC.



The switch operates within a temperature range of 0°C to 85°C. Termination is via .250" (6.3mm) quick connect tabs. The part is RoHS3 compliant and has an MSL rating of 1 Unlimited.

LT-1511-610-012 Quick Information

Product Type: Toggle Switch
Series: LT-Series
Canonical Name: Littelfuse Inc. LT-1511-610-012 Toggle Switch
Subcategory: Toggle Switch

LT-1511-610-012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LT-1511-610-012 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

LT-1511-610-012 Features

  • Single pole, single throw (SPST) toggle switch.
  • Rated for 15A at 125VAC and 28VDC.
  • Illuminated actuator with red incandescent light.
  • Panel mount with .250" quick connect termination.
  • Operates from 0°C to 85°C.

LT-1511-610-012 Applications

  • Suitable for general purpose switching.
  • Used in control panel applications.
  • Ideal for equipment with indicator lights.
  • Designed for industrial environments.

LT-1511-610-012 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the LT-1511-610-012 toggle switch?

The current rating is 15A.

What is the voltage rating for the LT-1511-610-012?

The voltage rating is 125VAC and 28VDC.

What type of actuator does the LT-1511-610-012 have?

It has a standard round actuator.

Is the LT-1511-610-012 illuminated?

Yes, it is illuminated with a red incandescent light.

What is the operating temperature range for this toggle switch?

The operating temperature range is 0°C to 85°C.

How is the LT-1511-610-012 mounted?

It is designed for panel mounting.
