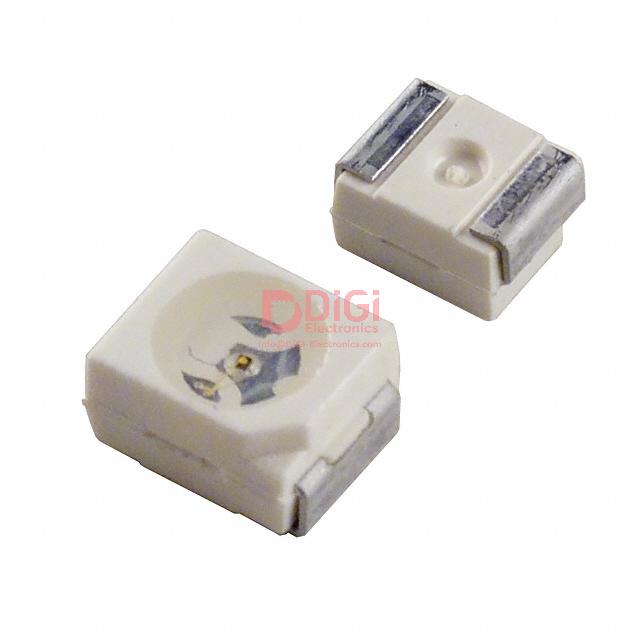

LST676 The ams-OSRAM LS T676-Q1R2-1-Z is a red LED with a 2V typical forward voltage and a 120° viewing angle. It comes in a 2PLCC SMD package.
Mfr Part #:

LST676

Available from 3 distributors
Mfr Name: Osram
Osram
The ams-OSRAM LS T676-Q1R2-1-Z is a red LED with a 2V typical forward voltage and a 120° viewing angle. It comes in a 2PLCC SMD package.
✓ Total Stock: 2,777 pcs
$ Price Range: $0.99

LST676 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
732 pcs
On Request
732 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LST676 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Failure Rate
Forward Voltage
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Tape & Reel
Viewing Angle
View Similar Products (0)

LST676 Description

Short technical summary and product information.

The ams-OSRAM LS T676-Q1R2-1-Z is a discrete red LED designed for indication purposes. It features a clear, colorless lens with a round, flat-top style, measuring 2.40mm in diameter.



This LED operates with a typical forward voltage of 2V at a test current of 20mA, producing a millicandela rating of 125.5mcd. Its dominant wavelength is 633nm, with a peak wavelength of 645nm, providing a clear red light output. The viewing angle is broad at 120°.



Designed for surface mounting, the LS T676-Q1R2-1-Z is supplied in a Tape & Reel package. Its active product status indicates it is currently available for use in new designs. The LED is classified under the TOPLED® series.



Environmental compliance includes RoHS3 compliance, REACH unaffected status, and Moisture Sensitivity Level 1 (unlimited).

LST676 Quick Information

Product Type: LED Indication - Discrete
Series: TOPLED®
Canonical Name: ams-OSRAM LS T676-Q1R2-1-Z Red LED
Subcategory: Discrete LED

LST676 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LST676 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LST676 Features

  • Red discrete LED for indication.
  • Typical forward voltage of 2V.
  • Wide 120° viewing angle.
  • Surface mount 2PLCC SMD package.
  • Dominant wavelength of 633nm.

LST676 Applications

  • Ideal for status indication.
  • Suitable for panel lighting.
  • Used in electronic devices.
  • General purpose signaling.

LST676 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the luminous intensity of the LST676?

The typical luminous intensity is 125.5mcd at 20mA.

What is the viewing angle of the LST676?

The viewing angle is 120°.

What is the forward voltage of the LST676?

The typical forward voltage is 2V at 20mA.

What is the dominant wavelength of the LST676?

The dominant wavelength is 633nm.

What is the peak wavelength of the LST676?

The peak wavelength is 645nm.

What is the lens style and size of the LST676?

The lens is round with a flat top and a diameter of 2.4mm.

What is the mounting type for the LST676?

The mounting type is surface mount.
