| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
162 pcs
|
162 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Failure Rate | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

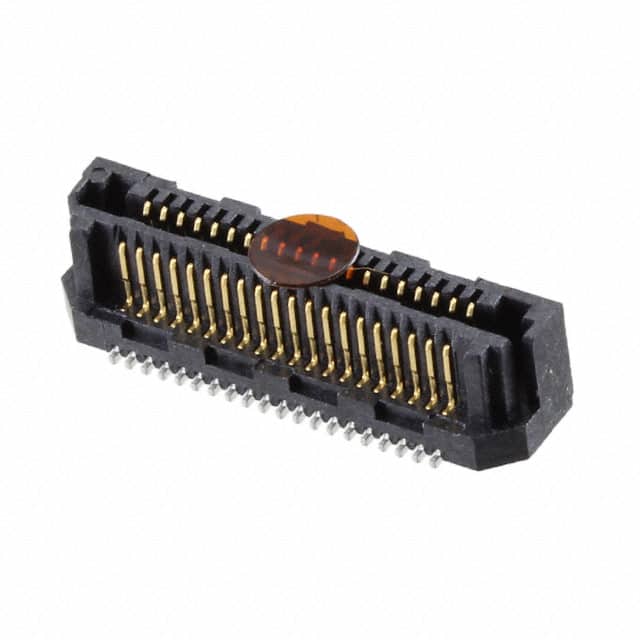

The LSS-120-03-L-DV-A-K is a 40-position hermaphroditic (self-mating) terminal/socket strip from the Samtec LSS series. It uses a 0.64mm (0.025") pitch and is designed for surface mount soldering. The contacts are finished with 10.0µin gold for reliable low-resistance connections.
This connector supports flexible stacking heights of 7mm, 8mm, and 10mm, making it suitable for mezzanine board-to-board applications. It is rated for a maximum current of 1.7A per power blade and a maximum voltage of 300 VAC/424 VDC per power blade. The LSS series has a Channel Performance Metric (CPM) of 25 Gbps NRZ, enabling high-speed data transmission.
The connector includes a board guide and pick-and-place feature for automated assembly. It is packaged in trays of 84 pieces, with a tape-and-reel variant (LSS-120-03-L-DV-A-K-TR) also available.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.36 | $3.36 |
| 25+ | $3.34 | $3.34 |
| 50+ | $2.99 | $2.99 |
| 84+ | $2.93 | $2.93 |
| 504+ | $2.68 | $2.68 |
| 1,008+ | $2.47 | $2.47 |
| 2,520+ | $2.26 | $2.26 |
| 5,040+ | $2.05 | $2.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.64mm (0.025 inches).
1.7 A maximum per power blade.
300 VAC / 424 VDC maximum per power blade.
Surface mount (SMD).
25 Gbps NRZ (per Channel Performance Metric).
7mm, 8mm, and 10mm.
