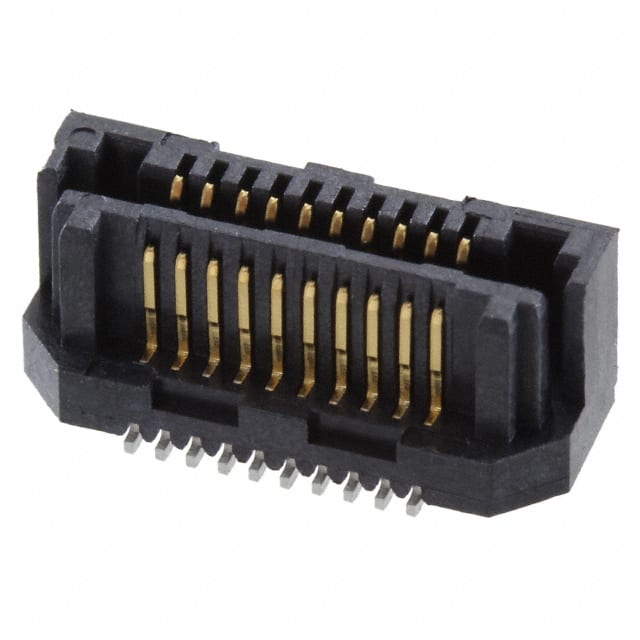

The Samtec LSS-110-01-L-DV-A is a 20-position, 2-row, hermaphroditic board-to-board connector with a 0.64mm pitch. It features a self-mating design, eliminating the need for separate male and female connectors, which simplifies inventory management. The connector is surface mountable and has a vertical orientation. It is constructed with a black LCP insulator and phosphor bronze contacts with gold plating (0.25µm). The operating temperature range is -55°C to +125°C.
Electrically, each pin is rated for 1.7A maximum, with a voltage rating of 300VAC/424VDC. The connector supports high-speed signaling with a channel performance metric of 25 Gbps NRZ, making it suitable for protocols such as USB 10Gbps, PCIe 4.0, and 10G/25G Ethernet. It provides an audible click when fully mated and has mating forces 4-6 times greater than typical micro-pitch connectors for reliable contact.
The connector offers mated stacking heights of 6mm, 7mm, and 9mm, with a height above board of 4.30mm. It includes a board guide feature for alignment. The part is packaged in trays with a standard quantity of 136 pieces per tray. It is lead-free solderable and has a maximum coplanarity of 0.10mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.05 | $3.05 |
| 50+ | $2.80 | $2.80 |
| 100+ | $2.01 | $2.01 |
| 544+ | $1.94 | $1.94 |
| 1,088+ | $1.76 | $1.76 |
| 2,040+ | $1.69 | $1.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
0.64mm (0.025").
1.7A per pin.
300 VAC / 424 VDC.
Surface mount.
-55°C to +125°C.
6mm, 7mm, and 9mm.
