| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
194 pcs
|
194 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| ESR (Equivalent Series Resistance) | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Tolerance | |
| Type |

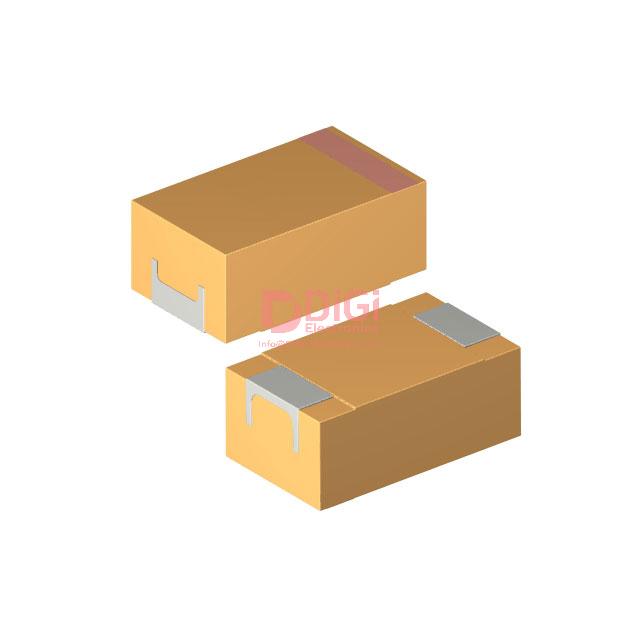

The Nemco LSR100/10DK100 is a surface mount tantalum capacitor designed for general purpose applications. It offers a capacitance of 100 µF with a ±10% tolerance and a rated voltage of 10 V.
This capacitor features a molded construction and a package size of 2917 (7343 Metric), with dimensions of 0.287" L x 0.169" W (7.30mm x 4.30mm) and a maximum seated height of 0.114" (2.90mm). The equivalent series resistance (ESR) is 100mOhm at 100kHz.
Operating within a temperature range of -55°C to 125°C, the LSR100/10DK100 is suitable for various electronic designs requiring reliable tantalum capacitor performance. Its surface mount capability facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.00 | $0.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 100 µF.
The rated voltage is 10 V.
The tolerance is ±10%.
The ESR is 100mOhm at 100kHz.
The operating temperature range is -55°C to 125°C.
It is in a 2917 (7343 Metric) package.
The mounting type is Surface Mount.
