| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,314 pcs
|
3314 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
208 pcs
|
208 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Package / Case | |
| Synchronous Rectifier | |
| Topology |

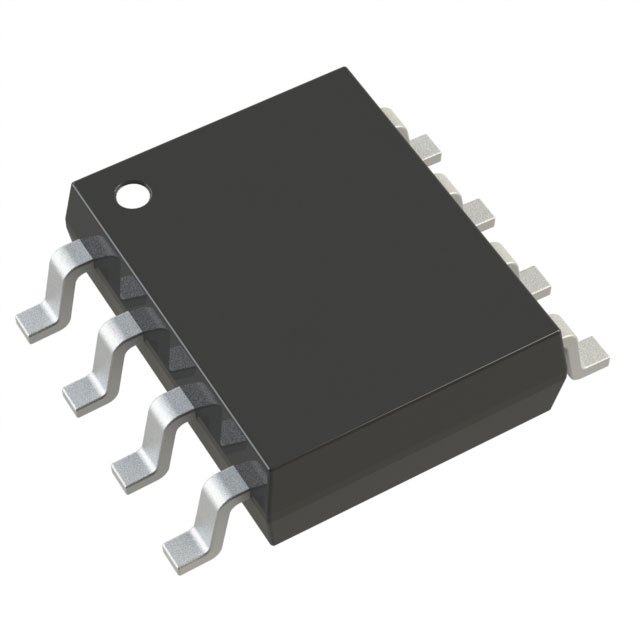

The Diodes Incorporated LSP5503L-R8A is a power management integrated circuit (PMIC) designed as a buck switching regulator. This adjustable output IC is capable of delivering up to 3A of current, with an input voltage range from 4.5V to 23V. The output voltage can be adjusted from 0.925V up to a maximum of 18.4V, offering flexibility for various power supply designs.
Featuring a switching frequency of 340kHz, the LSP5503L-R8A is suitable for step-down voltage conversion applications. It includes a synchronous rectifier for improved efficiency. The component is housed in an 8-SOIC package with an exposed pad, designed for surface mount installation. Its operating temperature range is from -20°C to 125°C (TJ).
This device is configured as a positive output regulator and is supplied in tape and reel packaging. The LSP5503L-R8A is part of Diodes Incorporated's power management solutions, aimed at providing efficient and reliable power regulation in electronic systems.
The output current is 3A.
The input voltage range is 4.5V to 23V.
The output voltage is adjustable from 0.925V to 18.4V.
The switching frequency is 340kHz.
Yes, it includes a synchronous rectifier.
The operating temperature range is -20°C to 125°C.
It is available in an 8-SOIC (0.154", 3.90mm Width) exposed pad package.
