| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
145,000 pcs
|
145000 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request | |
|
40,500 pcs
|
40500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Acceleration Range | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Package / Case | |
| Power Consumption | |
| Sensor Type | |
| Supplier Device Package |

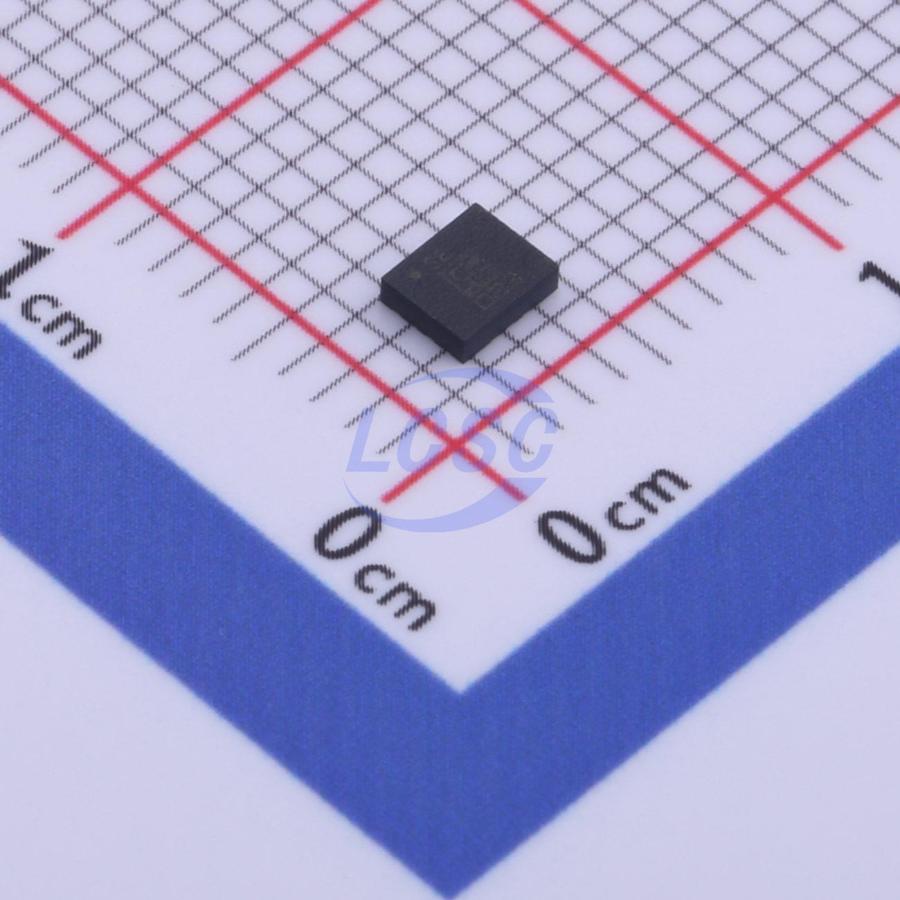

The LSM6DS3TR-C from STMicroelectronics is a system-in-package iNEMO inertial module that integrates a 3D digital accelerometer and a 3D digital gyroscope. Designed for always-on experiences with low power consumption, it operates at 0.90 mA in high-performance mode. The module supports a wide range of applications including pedometers, step detectors, significant motion detection, and indoor navigation.
Key features include selectable full-scale acceleration ranges of ±2/±4/±8/±16 g and angular rate ranges of ±125/±250/±500/±1000/±2000 dps. It also includes a 4 kbyte smart FIFO buffer for dynamic data batching and standard interrupts for events like free-fall and wakeup. The device operates with an analog supply voltage between 1.71 V and 3.6 V, with an independent IO supply of 1.62 V.
The LSM6DS3TR-C is housed in a compact 2.5 mm x 3 mm x 0.83 mm LGA-14L package, suitable for surface mounting. It supports both SPI and I2C serial interfaces, facilitating integration with main processors. Its robust design makes it a reliable choice for consumer electronics, IoT devices, and handheld applications requiring intelligent power saving and motion monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The analog supply voltage is 1.71 V to 3.6 V, with an independent IO supply of 1.62 V.
The device is available in a 14-LGA (2.5x3mm) package, specifically a 14-VFLGA.
The operating temperature range is -40°C to 85°C.
The full-scale acceleration range can be set to ±2/±4/±8/±16 g.
The full-scale angular rate range can be set to ±125/±250/±500/±1000/±2000 dps.
Yes, the LSM6DS3TR-C features an embedded temperature sensor.
