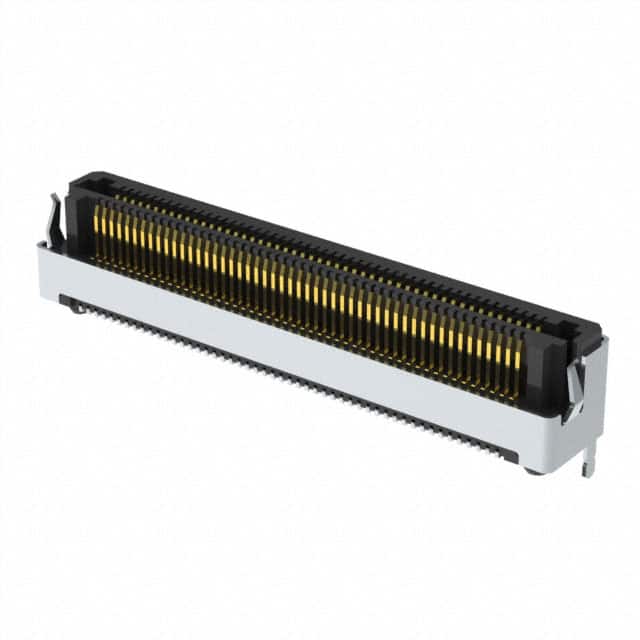

LSHM-150-04.0-L-DV-A-S-K-TR The LSHM-150-04.0-L-DV-A-S-K-TR is a 100-position, 2-row, 0.50mm pitch self-mating hermaphroditic connector from Samtec. It features surface mount termination, gold contacts, and a shielded design with pick-and-place pad.
Mfr Part #:

LSHM-150-04.0-L-DV-A-S-K-TR

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The LSHM-150-04.0-L-DV-A-S-K-TR is a 100-position, 2-row, 0.50mm pitch self-mating hermaphroditic connector from Samtec. It features surface mount termination, gold contacts, and a shielded design with pick-and-place pad.
✓ Total Stock: 2 pcs
$ Price Range: $5.67 - $8.74

LSHM-150-04.0-L-DV-A-S-K-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LSHM-150-04.0-L-DV-A-S-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Co-planarity
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Plating Base
Current Rating
Features
Height Above Board
Insulator Material
Lead Style
Lead-Free Solderable
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Packaging Method
Pitch
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

LSHM-150-04.0-L-DV-A-S-K-TR Description

Short technical summary and product information.

The LSHM-150-04.0-L-DV-A-S-K-TR is a 100-position, 2-row, 0.50mm pitch self-mating hermaphroditic connector from Samtec's LSHM series. This surface mount connector features gold-plated phosphor bronze contacts with 10µ" (0.25µm) gold finish over 50µ" nickel, ensuring reliable signal integrity and corrosion resistance.



The connector is designed for parallel board-to-board stacking applications with mated stacking heights of 6.5mm, 7mm, 8mm, and 10mm. It includes a shield for EMI protection, a board guide for alignment, and a polyimide pick-and-place pad for automated assembly. The insulator is molded from black LCP (Liquid Crystal Polymer) with a maximum coplanarity of 0.10mm.



Electrical ratings include 2.0A per pin current capacity and 160 VAC / 226 VDC voltage rating. The operating temperature range spans -55°C to +125°C, making it suitable for harsh environments. The connector is lead-free solderable and compatible with RoHS requirements.



Packaged in tape and reel for high-volume surface mount assembly, this connector is ideal for mezzanine card interconnects in telecommunications, data processing, and industrial electronics where high density and reliable mating are required.

LSHM-150-04.0-L-DV-A-S-K-TR Quick Information

Product Type: Self-Mating Board-to-Board Connector
Series: LSHM
Canonical Name: Samtec LSHM-150-04.0-L-DV-A-S-K-TR
Subcategory: Mezzanine Connector

LSHM-150-04.0-L-DV-A-S-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

LSHM-150-04.0-L-DV-A-S-K-TR Estimated Pricing

Qty Low High
1+ $8.74 $8.74
10+ $7.43 $7.43
25+ $6.97 $6.97
50+ $6.64 $6.64
100+ $6.32 $6.32
475+ $5.88 $5.88
950+ $5.67 $5.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

LSHM-150-04.0-L-DV-A-S-K-TR Features

  • 100 positions in 2 rows at 0.50mm pitch.
  • Self-mating hermaphroditic design reduces inventory.
  • Gold-plated contacts for reliable performance.
  • Shielded construction for EMI protection.
  • Includes pick-and-place pad for automated assembly.

LSHM-150-04.0-L-DV-A-S-K-TR Applications

  • Ideal for mezzanine board-to-board stacking.
  • Used in high-density interconnect systems.
  • Suitable for telecommunications and data processing.
  • Designed for automated surface mount assembly.

LSHM-150-04.0-L-DV-A-S-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the LSHM-150-04.0-L-DV-A-S-K-TR have?

100 positions arranged in 2 rows.

What is the pitch of this connector?

0.50mm (0.020").

What is the current rating per pin?

2.0A per pin.

What is the voltage rating?

160 VAC / 226 VDC.

What is the mounting type?

Surface Mount (SMT).

What is the operating temperature range?

-55°C to +125°C.

What contact finish is used?

Gold with 0.25µm (10µin) thickness over 50µ" nickel.
