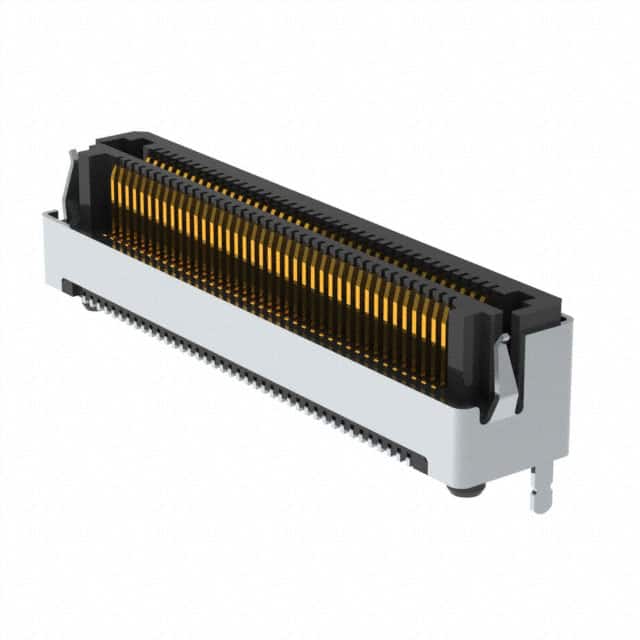

The LSHM-140-04.0-F-DV-A-S-K-TR is a 0.50mm pitch, 80-position hermaphroditic connector from the Samtec LSHM series. It is designed for board-to-board applications and supports mated stacking heights of 6.5mm, 7mm, 8mm, and 10mm. The connector is self-mating, reducing inventory complexity, and provides an audible click upon mating. It is shielded for EMI protection and includes a board guide and a polyimide pick and place pad for automated assembly.
Electrically, the connector is rated for 2.0A per pin and 160VAC/226VDC. It operates over a temperature range of -55°C to +125°C. Contacts are phosphor bronze with gold finish (3.00µin) over 50µ" nickel. The insulator is black LCP. The connector is surface mount with lead-free solderable terminations and meets SMT coplanarity of 0.10mm max.
This connector is qualified for severe environment testing per MIL-DTL-55302 and is suitable for parallel, perpendicular, and coplanar configurations. It is packaged in tape and reel for automated placement. The LSHM series offers multiple stack height options and lubricated variants, making it versatile for a range of mezzanine and stacking applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.34 | $7.34 |
| 10+ | $6.11 | $6.11 |
| 50+ | $5.82 | $5.82 |
| 100+ | $5.54 | $5.54 |
| 250+ | $5.41 | $5.41 |
| 475+ | $4.91 | $4.91 |
| 2,375+ | $4.36 | $4.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
0.50mm (0.020").
2.0 A per pin.
160 VAC / 226 VDC.
Surface Mount.
-55 °C to +125 °C.
6.5mm, 7mm, 8mm, and 10mm.
