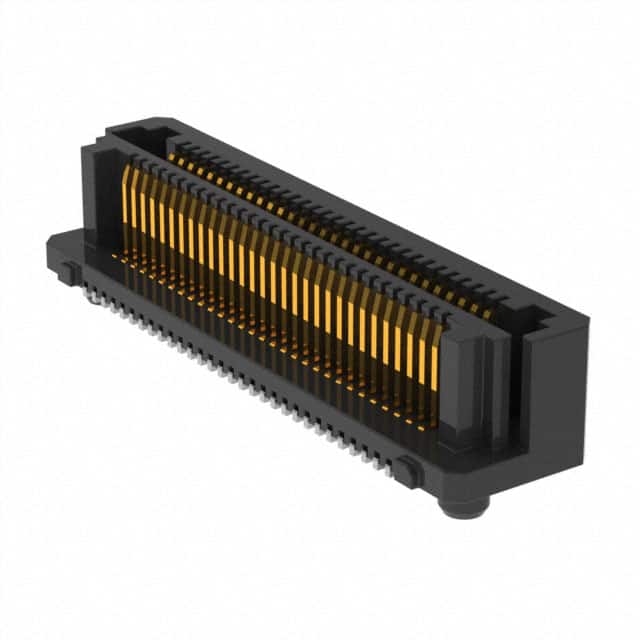

The LSHM-130-02.5-L-DV-A-N-TR is a self-mating, non-gendered hermaphroditic connector from Samtec's LSHM series. It features 60 positions arranged in 2 rows with a 0.50mm pitch, designed for surface mount applications. The connector uses phosphor bronze contacts with 0.25µm gold plating and a black LCP insulator.
This connector supports mated stacking heights of 5mm, 5.5mm, 6.5mm, and 8.5mm, with a board height of 3.96mm. It is rated for 2.0A per pin and 160 VAC / 226 VDC. The operating temperature range is -55°C to +125°C.
The part includes a board guide feature and is supplied in tape and reel packaging with a polyimide pick and place pad. It is lead-free solderable and has a coplanarity of 0.10mm maximum.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.39 | $6.39 |
| 10+ | $5.56 | $5.56 |
| 25+ | $5.19 | $5.19 |
| 50+ | $4.96 | $4.96 |
| 100+ | $4.71 | $4.71 |
| 250+ | $4.34 | $4.34 |
| 625+ | $3.65 | $3.65 |
| 1,250+ | $3.54 | $3.54 |
| 1,875+ | $3.32 | $3.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions in 2 rows.
0.50mm (0.020").
2.0 A per pin (LSHM series).
160 VAC / 226 VDC.
Surface mount.
-55°C to +125°C.
Gold, 0.25µm thickness.
