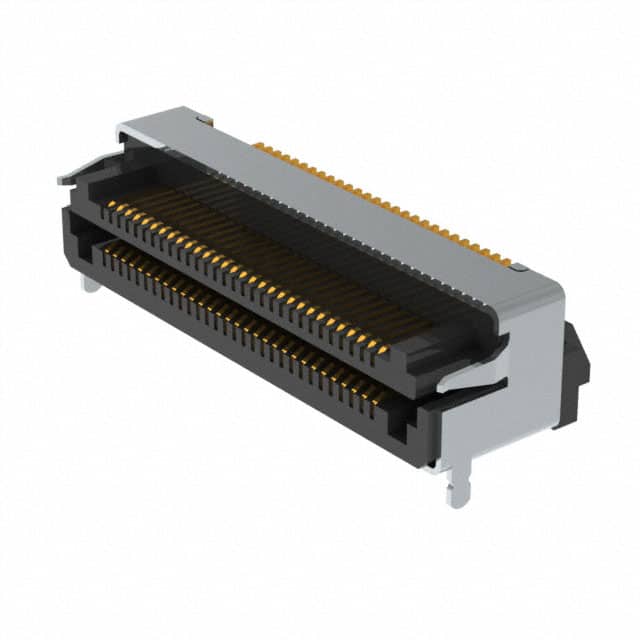

LSHM-130-01-L-DH-A-S-K-TR The LSHM-130-01-L-DH-A-S-K-TR is a self-mating, hermaphroditic connector from Samtec with 60 positions in 2 rows, 0.50mm pitch, surface mount right angle, gold contact finish, and shielded. It features board guide and pick and place pad for automated assembly.
Mfr Part #:

LSHM-130-01-L-DH-A-S-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The LSHM-130-01-L-DH-A-S-K-TR is a self-mating, hermaphroditic connector from Samtec with 60 positions in 2 rows, 0.50mm pitch, surface mount right angle, gold contact finish, and shielded. It features board guide and pick and place pad for automated assembly.
✓ Total Stock: 25 pcs
$ Price Range: $5.35 - $8.56

LSHM-130-01-L-DH-A-S-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LSHM-130-01-L-DH-A-S-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Plating
Current Rating
Features
Height Above Board
Insulator Material
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Plating Option
Shield Option
Tail Option
Tape & Reel
Voltage Rating
View Similar Products (0)

LSHM-130-01-L-DH-A-S-K-TR Description

Short technical summary and product information.

This is a self-mating, hermaphroditic connector from Samtec's LSHM series. It has 60 positions arranged in 2 rows with a 0.50mm pitch. The connector is surface mount, right angle, with gold contact finish (10 µ”) over phosphor bronze contacts. The insulator is black LCP.



The connector is rated for 2.0 A per pin and 160 VAC/226 VDC. Operating temperature range is -55°C to +125°C. It includes a shield and board guide, and has a polyimide pick and place pad for automated assembly. The connector is supplied in tape and reel packaging.



This design is suitable for mezzanine board-to-board applications where a self-mating, low-profile connection is needed. The right-angle termination allows for compact layouts. The shielded option provides EMI protection. The high mating force ensures reliable connection.

LSHM-130-01-L-DH-A-S-K-TR Quick Information

Product Type: Array, Edge Type, Mezzanine (Board to Board) Connector
Series: LSHM
Canonical Name: LSHM-130-01-L-DH-A-S-K-TR — Self-Mating 60-Pin Right Angle SMT Connector, 0.50mm Pitch, Shielded
Subcategory: Mezzanine Connector

LSHM-130-01-L-DH-A-S-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LSHM-130-01-L-DH-A-S-K-TR Estimated Pricing

Qty Low High
1+ $8.56 $8.56
10+ $7.58 $7.58
25+ $7.11 $7.11
50+ $6.77 $6.77
100+ $6.67 $6.67
375+ $6.67 $6.67
750+ $6.20 $6.20
1,875+ $5.35 $5.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

LSHM-130-01-L-DH-A-S-K-TR Features

  • Self-mating hermaphroditic design reduces inventory.
  • 60 positions with 0.50mm pitch in 2 rows.
  • Surface mount right angle termination.
  • Gold contact finish for reliable connections.
  • Shielded for EMI protection.

LSHM-130-01-L-DH-A-S-K-TR Applications

  • Ideal for mezzanine board-to-board stacking.
  • Used in compact electronic devices requiring high density.
  • Suitable for automated assembly with pick and place.
  • Provides EMI shielding in sensitive applications.

LSHM-130-01-L-DH-A-S-K-TR FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

60 positions arranged in 2 rows.

What is the pitch of this connector?

0.50mm (0.020 inch).

What is the current rating for this connector?

2.0 A per pin (LSHM series).

What is the voltage rating for this connector?

160 VAC / 226 VDC.

What mounting type does this connector use?

Surface mount, right angle.

What is the operating temperature range?

-55°C to +125°C.
