| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Features | |
| Height Above Board | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Tape & Reel | |
| Voltage Rating |

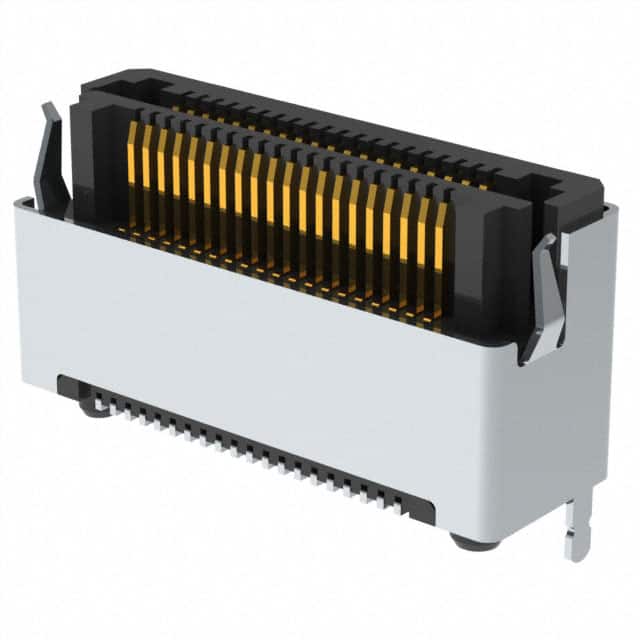

The LSHM-120-06.0-F-DV-A-S-K-TR is a self-mating, non-gendered, hermaphroditic connector from Samtec's LSHM series (RazorBeam product line). It features 40 positions arranged in 2 rows with a fine 0.50mm pitch, making it suitable for high-density board-to-board applications. The connector is surface mount (SMD) and comes with gold flash contacts (3.00µin) on phosphor bronze, with a black LCP insulator. It is shielded and includes a board guide and pick-and-place pad for automated assembly. Electrical ratings include 2.0A per pin current and 160VAC/226VDC voltage. Operating temperature range is -55°C to +125°C. The connector supports multiple mated stacking heights: 8.5mm, 9mm, 10mm, and 12mm. It is supplied in tape and reel packaging. The design provides an audible click upon mating and is part of Samtec's severe environment testing qualified series (LSHM).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.67 | $5.67 |
| 10+ | $5.02 | $5.02 |
| 50+ | $4.75 | $4.75 |
| 100+ | $4.51 | $4.51 |
| 375+ | $4.10 | $4.10 |
| 750+ | $3.96 | $3.96 |
| 2,250+ | $3.56 | $3.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions in 2 rows.
0.50mm (0.020").
2.0 A per pin.
160 VAC / 226 VDC.
Surface mount (SMD).
-55°C to +125°C.
Gold flash, 3.00µin (0.076µm) thickness.
