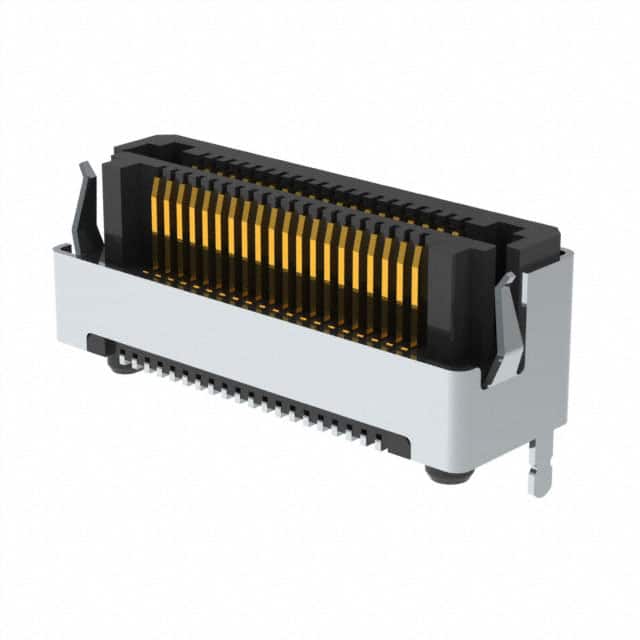

LSHM-120-04.0-L-DV-A-S-K-TR Samtec LSHM-120-04.0-L-DV-A-S-K-TR is a 40-position hermaphroditic connector with 0.50mm pitch, surface mount, gold plating. Designed for parallel board stacking with heights of 6.5mm to 10mm.
Mfr Part #:

LSHM-120-04.0-L-DV-A-S-K-TR

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec LSHM-120-04.0-L-DV-A-S-K-TR is a 40-position hermaphroditic connector with 0.50mm pitch, surface mount, gold plating. Designed for parallel board stacking with heights of 6.5mm to 10mm.
✓ Total Stock: 22 pcs
$ Price Range: $3.62 - $5.32

LSHM-120-04.0-L-DV-A-S-K-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LSHM-120-04.0-L-DV-A-S-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Coplanarity
Current Rating
Features
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pick & Place Pad
Pick and Place Pad
Pitch
SVHC Present
Severe Environment Testing
Shield Option
Tail Option
Tape & Reel
Termination Style
Voltage Rating (Nominal @ AC)
Voltage Rating (Nominal @ DC)
View Similar Products (0)

LSHM-120-04.0-L-DV-A-S-K-TR Description

Short technical summary and product information.

The Samtec LSHM-120-04.0-L-DV-A-S-K-TR is a 40-position self-mating (hermaphroditic) connector from the LSHM series, part of the Razor Beam family. It features a 0.50mm pitch and a surface mount termination style, with gold plated contacts (10µin over 50µin nickel) on phosphor bronze contacts. The insulator is black liquid crystal polymer (LCP).



This connector is designed for parallel board-to-board stacking applications, supporting mated stacking heights of 6.5mm, 7mm, 8mm, and 10mm. It includes a shield for EMI protection, a board guide for alignment, and a polyimide film pick and place pad for automated assembly. The operating temperature range is -55°C to +125°C.



Electrically, each pin is rated for 2.0A, with voltage ratings of 160 VAC and 226 VDC. The connector meets severe environment testing qualifications per MIL-DTL-55302. Coplanarity is controlled to 0.10mm maximum. The packaging is tape and reel, with a lead style of -04.0 and tail option -A.

LSHM-120-04.0-L-DV-A-S-K-TR Quick Information

Product Type: Hermaphroditic Board-to-Board Connector
Series: LSHM
Canonical Name: Samtec LSHM Series 40 Position 0.50mm Pitch Hermaphroditic Connector, Surface Mount, Gold Plating
Subcategory: Mezzanine (Board to Board) Connector

LSHM-120-04.0-L-DV-A-S-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

LSHM-120-04.0-L-DV-A-S-K-TR Estimated Pricing

Qty Low High
1+ $5.32 $5.32
10+ $4.66 $4.66
50+ $4.65 $4.65
100+ $4.43 $4.43
250+ $4.12 $4.12
450+ $4.05 $4.05
2,250+ $3.62 $3.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

LSHM-120-04.0-L-DV-A-S-K-TR Features

  • Self-mating hermaphroditic design reduces inventory.
  • 40 positions with 0.50mm pitch for high density.
  • Surface mount with gold plated contacts.
  • Shielded construction for EMI protection.
  • Supports stacking heights from 6.5mm to 10mm.

LSHM-120-04.0-L-DV-A-S-K-TR Applications

  • Ideal for parallel board-to-board stacking.
  • Suitable for high-density mezzanine connections.
  • Use in severe environment applications per MIL-DTL-55302.
  • Automated assembly with pick and place pad.

LSHM-120-04.0-L-DV-A-S-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the LSHM-120-04.0-L-DV-A-S-K-TR have?

40 positions.

What is the pitch of this connector?

0.50mm (0.020").

What is the current rating per pin?

2.0 A per pin.

What are the voltage ratings?

160 VAC and 226 VDC.

What mounting type does this connector use?

Surface mount (SMD).

What is the operating temperature range?

-55°C to +125°C.

What mated stacking heights are supported?

6.5mm, 7mm, 8mm, and 10mm.
