Mfr Part #:

LSHM-120-02.5-L-DV-A-S-TR

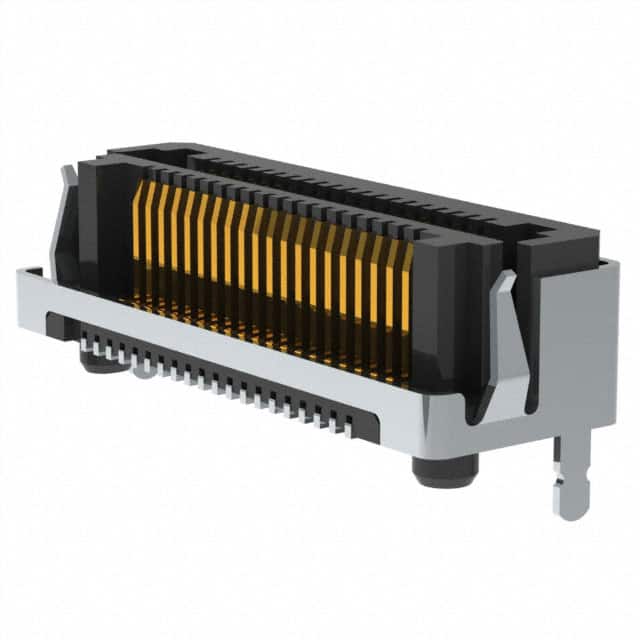

40-position, 0.50mm pitch self-mating hermaphroditic connector from Samtec. Surface mount, gold contacts, shielded with board guide.

✓ Total Stock: 115 pcs

$ Price Range: $3.48 - $5.26

LSHM-120-02.5-L-DV-A-S-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	115 pcs On Request	115 pcs	On Request	1	On Request	On Request	2028	On Request	On Request

LSHM-120-02.5-L-DV-A-S-TR Description

Short technical summary and product information.

The Samtec LSHM-120-02.5-L-DV-A-S-TR is a 40-position, 2-row, 0.50mm pitch self-mating hermaphroditic connector from the LSHM series. It features a surface mount termination with vertical lead style and is supplied in tape and reel packaging. The connector has gold contact finish with 10.0µin (0.25µm) thickness over phosphor bronze contacts. The insulator is black LCP. It includes a board guide and is shielded. Mated stacking heights of 5mm, 5.5mm, 6.5mm, and 8.5mm are supported. The operating temperature range is -55°C to +125°C. Current rating is 2.0A per pin typical, with voltage ratings of 160 VAC and 226 VDC maximum. The connector is lead-free solderable and has a coplanarity of 0.004" max. It is designed for severe environment applications and aligns with MIL-DTL-55302. The self-mating design reduces inventory costs and provides an audible click when mated. Typical applications include board-to-board stacking in compact electronic devices.

LSHM-120-02.5-L-DV-A-S-TR Quick Information

Product Type: Mezzanine (Board-to-Board) Connector

Series: LSHM

Canonical Name: Self-Mating Hermaphroditic Connector, 40 Positions, 2 Rows, 0.50mm Pitch, Surface Mount, Gold Contact Finish

Subcategory: Mezzanine (Board-to-Board) Connector

LSHM-120-02.5-L-DV-A-S-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LSHM-120-02.5-L-DV-A-S-TR Estimated Pricing

Qty	Low	High
1+	$5.26	$5.26
10+	$4.87	$4.87
25+	$4.63	$4.63
50+	$4.38	$4.38
100+	$4.15	$4.15
250+	$3.99	$3.99
500+	$3.74	$3.74
750+	$3.70	$3.70
1,500+	$3.48	$3.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

LSHM-120-02.5-L-DV-A-S-TR Features

40 positions in 2 rows.
0.50mm pitch self-mating design.
Gold plated phosphor bronze contacts.
Shielded with integrated board guide.
Supports multiple stacking heights.

LSHM-120-02.5-L-DV-A-S-TR Applications

Board-to-board stacking in compact electronics.
Mezzanine connections in industrial systems.
High-density signal routing applications.
Severe environment qualified designs.

LSHM-120-02.5-L-DV-A-S-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

40 positions in 2 rows.

What is the pitch?

0.50mm (0.020").

What is the current rating?

2.0A per pin typical.

What is the voltage rating?

160 VAC maximum and 226 VDC maximum.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What are the mated stacking heights?

5mm, 5.5mm, 6.5mm, and 8.5mm.

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Features	Board Guide, Shielded
Height Above Board	0.156" (3.96mm)
Insulator Material	Black LCP
Lead Style	Vertical
Mated Stacking Heights	5mm, 5.5mm, 6.5mm, 8.5mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Operating Temperature Range	-55 °C to +125 °C
Pitch	0.50mm (0.020")
Tape & Reel	Yes
Termination Style	SMD
